Zhongtai Packing Machinery

5-30L Chemical Packaging

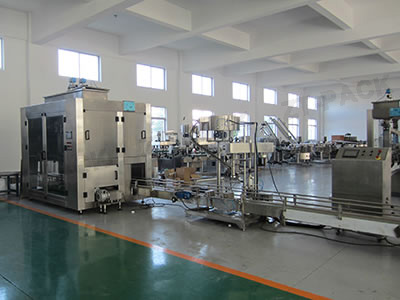

The 5-30L chemical packaging machine includes a weight-based filling machine, single head capping machine, self-adhesive labeling machine, conveyor belts and oil drum packaging. The chemical production line processes dishwashing soap, detergent, cleaners, and other viscous liquids.

• Filling range: 5-30kg
• Bottle size range: L: 160mm~360mm, W: 140mm~260mm, H: 250mm~500mm
  (Min: 140 x 200 x 320 mm, Max: 260 x 290 x 500 mm)
• Diameter of bottle opening: ≥Φ40mm
• Power supply: ~ 220 V, 50 Hz
• Total power: 3.5 kW
• Air consumption: 120L/Min
• Measurement accuracy: ± 0.5% (Note: Filling accuracy depends on the viscosity of the material)
• Production capacity: ≤480bottles/hour
• Bottle feeding direction: From left to right

• Only three people (one operator, two assistants) are needed to operate this production line.
• In-line self-adhesive labeling machine and single-head capping machine are easy to use.
• Robot palletizing allows for automatic production.
• Weight-based filling machine is highly precise even with large orders or with liquid that foams when poured.
