Capping Machines

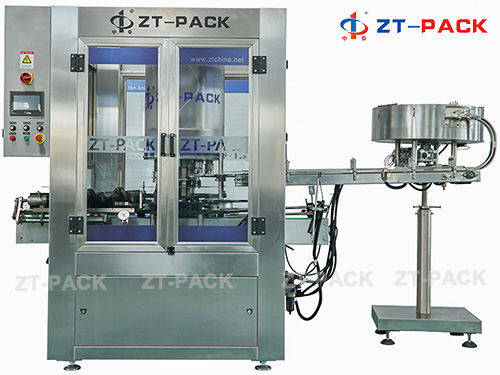

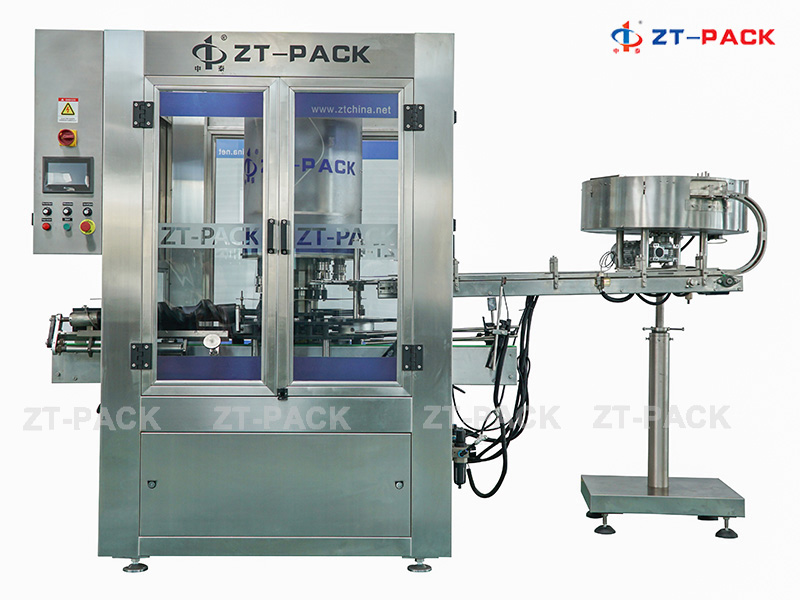

Rotary Capping Machine

Rotary Capping Machine

The rotary capping machine has 6/8 manipulators to carry out automatic bottle feed, cap settling, cap clamping, and capping. Capping is accomplished using a belt, ensuring no bottle damage. During screw capping, the pneumatic clamp is used to tighten the cap, and the machine is also outfitted with a high-performance clutch. Capping will continue automatically after slipping, with no cap damage. With a high capping speed, this equipment features a high pass rate with minimal unqualified products leaving the production line. After capping is complete, the clamp will automatically move away, preventing any damage to the cap. Both the pass rate and capping speed are exceptionally high.

Features
  • The rotary capping machine is made of 304 stainless steel.
  • PLC controlled with touchscreen operation.
  • The capping machine is suitable for liquid requiring a high production speed and large output.
Application

The rotary capping machine is applicable for large caps with a prominence on the inner side, as well as tamper resistant caps.

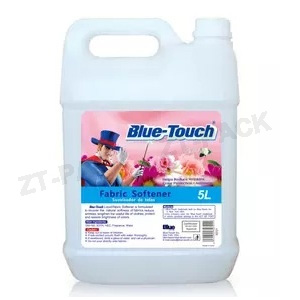

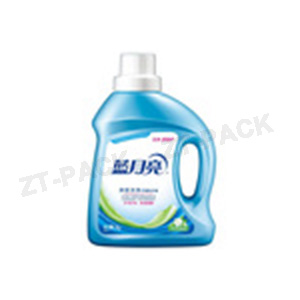

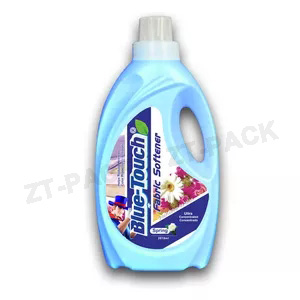

Applicable Bottle Types
  • Rotary Capping Machine
  • Rotary Capping Machine
  • Rotary Capping Machine
Technical Parameters
Capacity ≤6000 (b/h)
Applicable Bottle Diameter 45-100 mm
Applicable Bottle Height 80-280mm
Cap Diameter 35-55mm
Air Pressure 0.6-0.8Mpa
Voltage AC380V, 50/60Hz
Total Power 3Kw
Machine Weight 1000kg
Dimension 2000(L)×1300(W)×2400(H)mm
