Self-Adhesive Labeling Machine

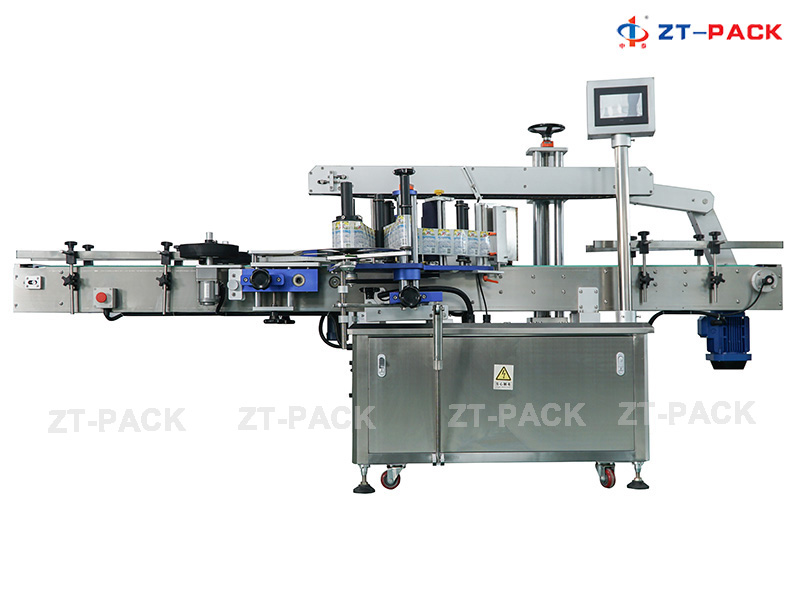

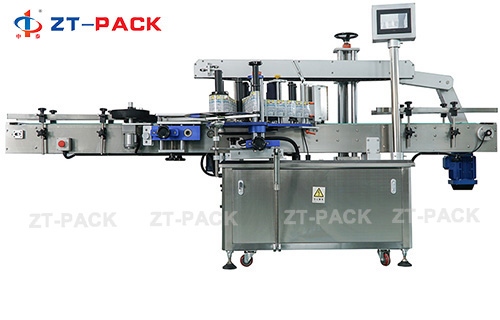

Self-Adhesive Labeling Machine

The self-adhesive labeling machine is suitable for round or square bottles. It is driven by stepping motor or servo motor for a better labeling effect. It is PLC controlled, with the labeling effect accomplished through photoelectric detection, ensuring the labeling position and angle are adjustable. With a high production efficiency, labeling is stable and accurate with an easy operation.

Features
  • The self-adhesive labeling machine provides highly efficient double-sided labeling.
  • It is suitable for round bottles with labels.
  • Wide application range, including round, flat, square, and rectangular bottles.
  • The HMI system ensures an easy operation.
  • The labeling speed is adjustable.
  • Stainless steel frame.
Application

The self-adhesive labeling machine is applicable for round or square bottles for cosmetics, personal care products, household items, food and beverage, nourishment, medicine, and more.

Applicable Bottle Types
  • Self-Adhesive Labeling Machine
  • Self-Adhesive Labeling Machine
  • Self-Adhesive Labeling Machine
  • Self-Adhesive Labeling Machine
  • Self-Adhesive Labeling Machine
Technical Parameters
Capacity ≤7200 (b/h)
Applicable Label Height 40-180mm
Applicable Label Height 40-140mm
Labeling Precision ±1mm
Labeling Speed 0-30 (m/min)
Voltage AC220V, 50/60Hz
Total Power 2Kw
Machine Weight 450kg
Dimension 2000(L)×1200(W)×1400(H)mm
Direction Left to Right or Right to Left
Speed 120-250 CPM (Depending on product characteristics and feed speed)
Container Diameter L: 30-300mm W: 20-140mm
Container Height 55-400mm
Label Length 15-300mm
Label Height 10-150mm
Labeling Accuracy ±1mm (Subject to product characteristics)
Label Reel Size 320mm (Max)
