Wet Glue Labeling Machine (for Round Bottle), TN-120A

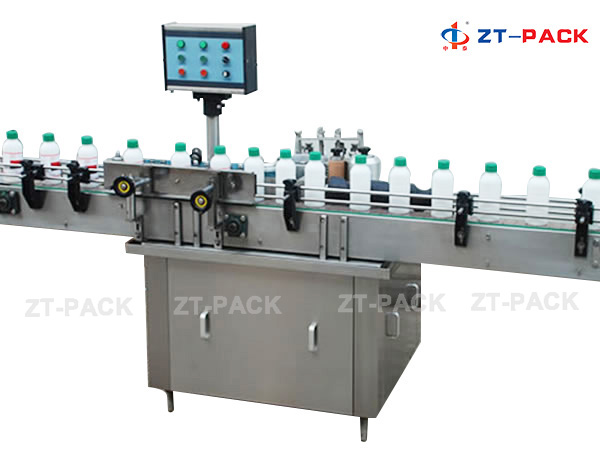

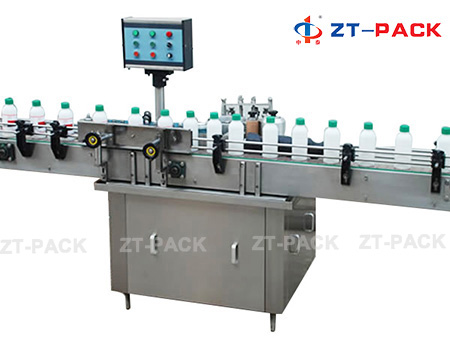

Wet Glue Labeling Machine (for Round Bottle), TN-120A

The wet glue labeling machine for round bottles automatically labels plastic, PET and glass bottles. Sensors detect when a bottle has no label and will not apply glue as well as when a bottle is out of place. This glue labeler is used in agrochemical, pharmaceutical, cosmetic, and food industries for bottling products. The bottle labeling machine is fast with a low error rate and can easily be adjusted to label large and small bottles.

Main performance parameters

Bottle Size: Φ30-95mm
Speed: ≤100 bottles/min
Labeling precision: ±1mm
Label length: 50-280mm
Label height: 40-150mm
Power: ~380V, 50HZ
Power: 1.2KW
External dimensions: 2500 x 1000 x 1200(L x W x H)mm
Weight: about 700Kg
Pneumatic source: <0.5MPa clean and stable compressed air

Features

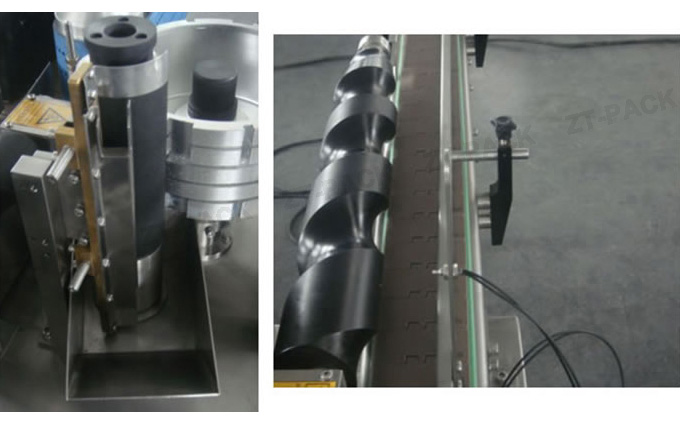

Specially designed glue holder precisely applies glue.
Sensors detect which bottles have no labels.

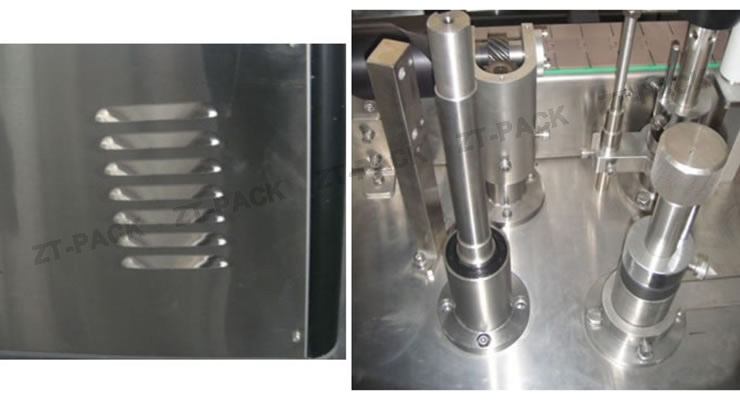

An air outlet in the cabinet keeps the machine cool so it lasts longer.
Easy to adjust the bottle labeling machine for different sized bottles.

Use this labeling machine if

Labels are made of paper or labels are pre-cut.

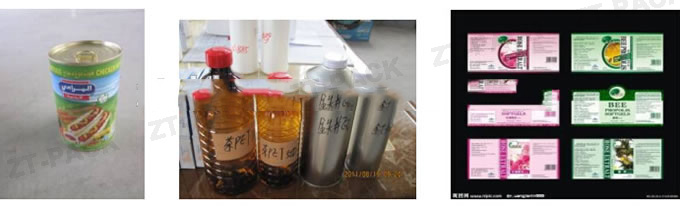

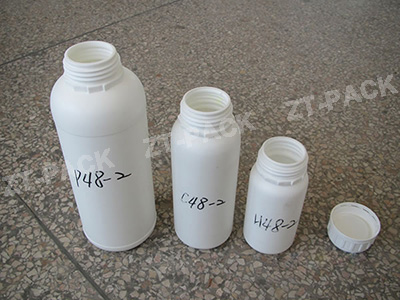

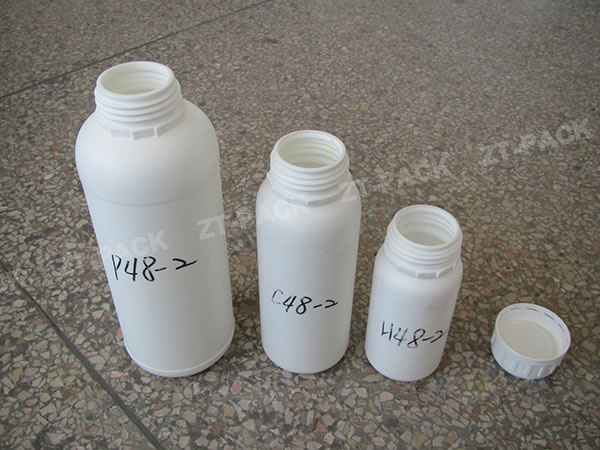

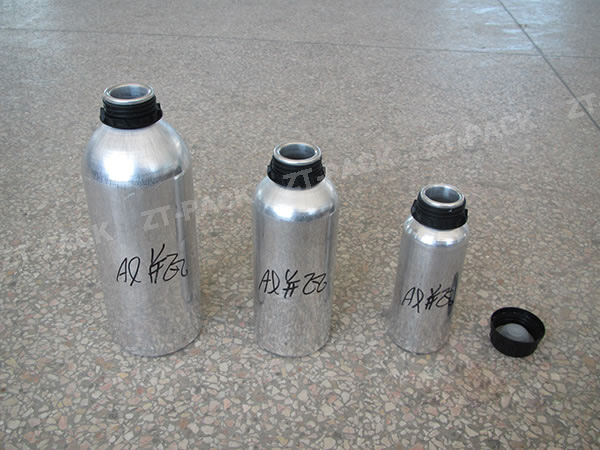

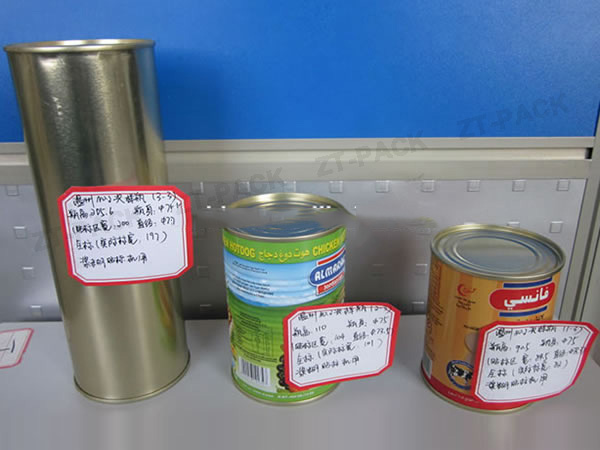

Suitable bottles

Configuration

Name	Brand	Origin	Quantity
Motor	Dongli	Taiwan	1
SMPS	AIRTAC	Taiwan	1
Optical sensor button	SICK	German	1
Air switch	Autonics	German	2
Sensor button	TURCK	German	1
Power button	Ming wei	Taiwan	1
Frequency inverter	Panasonnic	Japan	1
Pneumatic cylinder	AIRTAC	Taiwan	1
