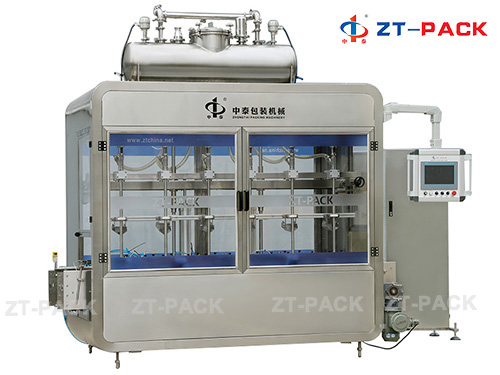

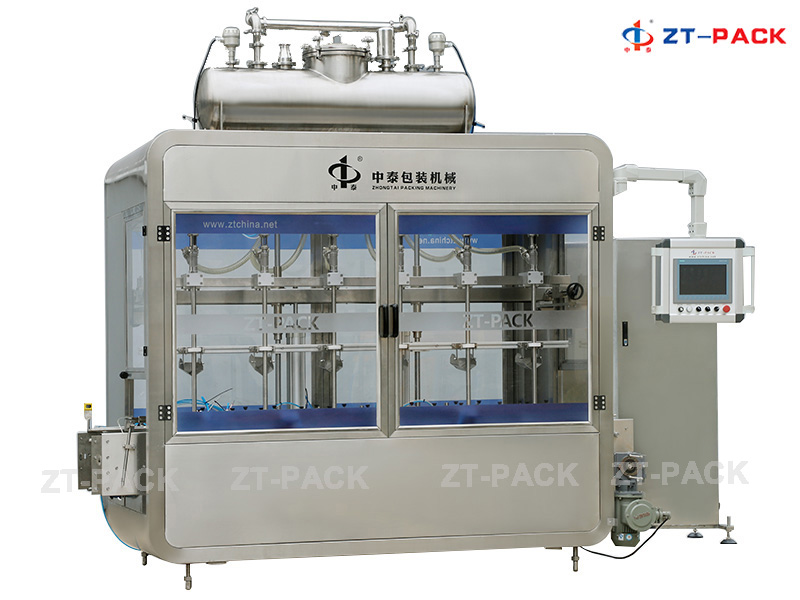

Weighing Filling Machine

The weighing filling machine is used for filling liquid in a range of 5 to 25kg. It features a weight feedback system under each fill head to ensure the filling accuracy.

Features

The weighing filling machine is made of 304 stainless steel.
The machine uses a PLC with touchscreen as its control system.
The diving nozzle is designed to prevent bubble formation.
Each fill head has a weight feedback system underneath to ensure the filling precision.
The machine is easy to take apart and clean for routine maintenance.
An alarm will sound in the event of machine failure.
Flexible operation: suitable for filling bottles in a range of 5 to 25kg in capacity.

Application

The weighing filling machine is suitable for filling barrel products such as alcohol, cooking oil, lubricating oil, fertilizer and more.

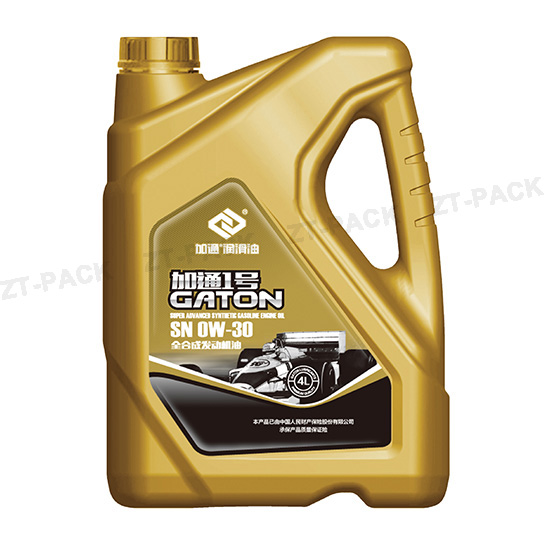

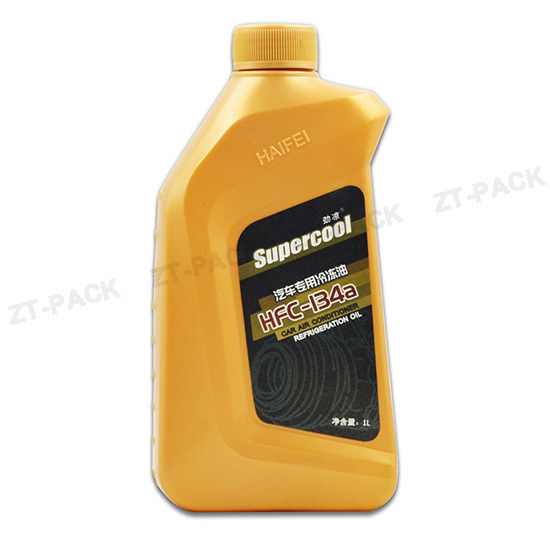

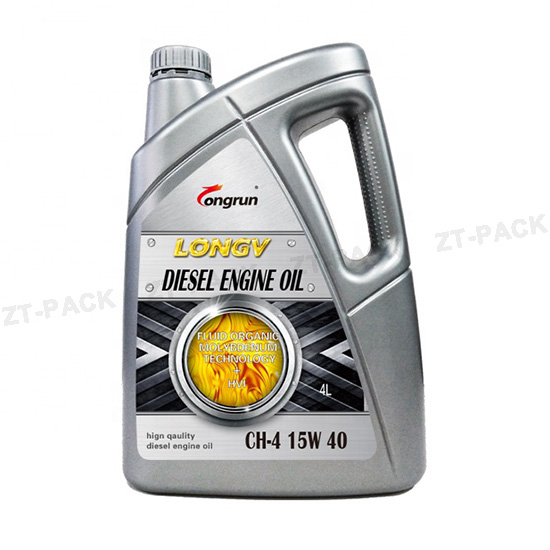

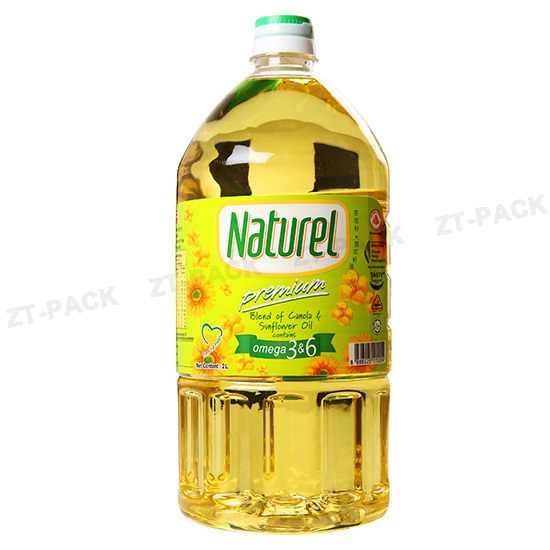

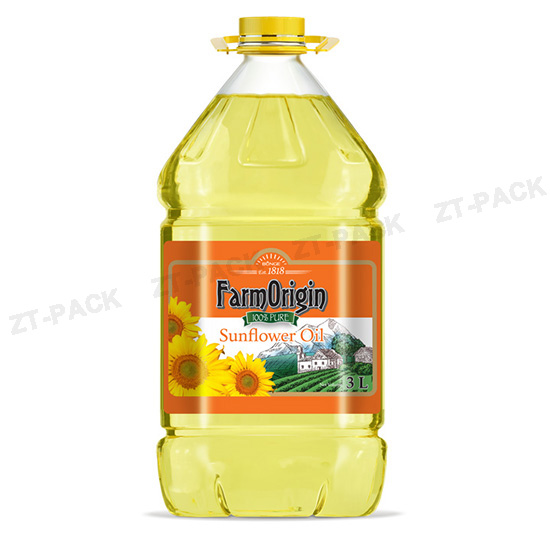

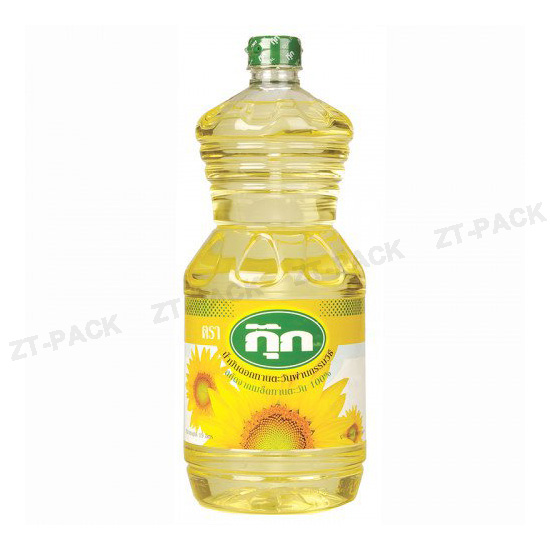

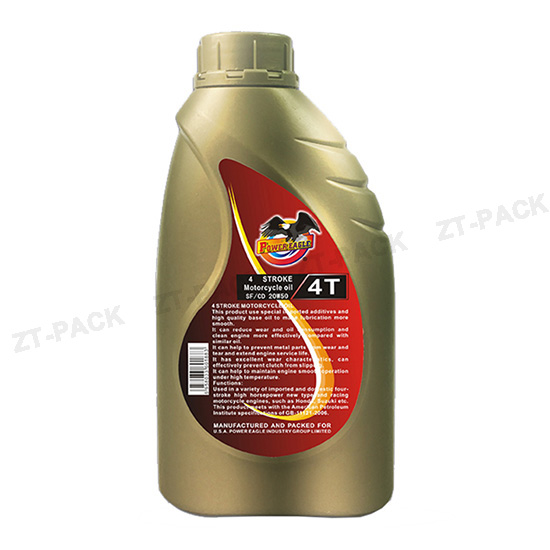

Applicable Bottle Types

Technical Parameters

Model	ZCJ-4/6
Dimension	3000×1700×2300mm
Filling head	4 /6
Capacity (10L)	300 / 500 drums/hour
Capacity (25L)	250 / 400 drums/hour
Power	2KW
Suitable bottle	length: 160-360mm width: 100-300mm height: 250-500mm
Barrel neck diameter	≥Φ40mm
Filling error	≦±0.5% F.S
Filling range	10kg-30kg
Air pressure	0.6Mpa——0.8Mpa
Power supply	220V, 50HZ
