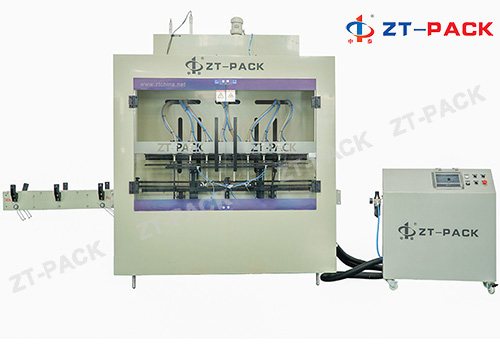

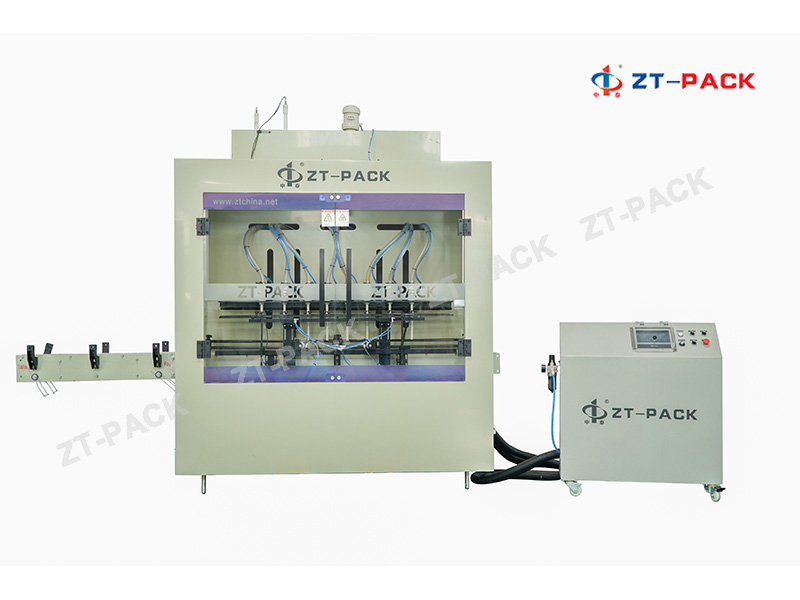

Corrosive Liquid Filling Machine

The corrosive liquid filling machine is a fully corrosion resistant filling system specially designed for filling corrosive liquids. It is ideal for automatic filling of 50 to 50,000mL of low viscous liquids. Without having to change parts, users can easily fill different bottle types with this machine. Machine cleaning is easy using plain water and requiring no special cleaners or chemicals. All parts that come into contact with liquid materials are made of a non-metal, corrosion resistant material. The diving nozzle also features an accurate measuring unit to ensure no bubbles and no leakage.

Features

The corrosive liquid filling machine is made of heavy-duty plastic.
Parts that come into contact with liquid to be filled are made of PVC or PU. These parts include the plastic liquid storage tank, acid resistant conveyor, automatic level induction system with floating ball and protection unit.
The fill head is easily adjusted to meet requirements for different bottle heights.
It features a pneumatic bottle blocking unit with bottle feeding counter and discharging counter.
This filling machine is capable of filling large volume bottles in several steps.
PLC controlled with an HMI touchscreen.
Quick connect accessories are made of an easy-to-clean stainless steel.
The bottle clamping unit is designed for bottles with a thin neck.

Application

The corrosive liquid filling machine is used to fill bottles with bleach, toilet cleaner, acid, chlorine, NaClO, sulfuric acid, 84 disinfectant, glue and strong acid. It is applicable for different bottle shapes and irregularly shaped bottles.

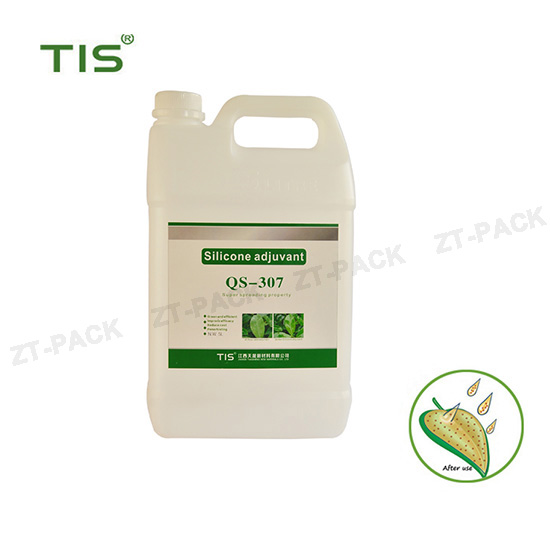

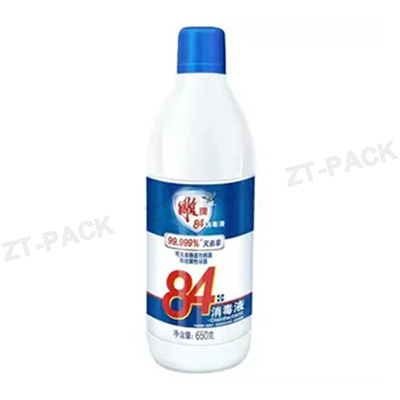

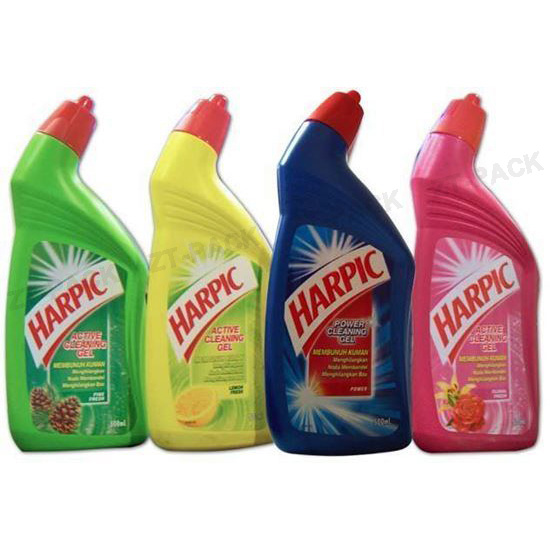

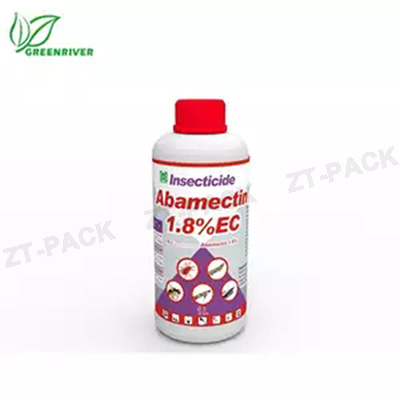

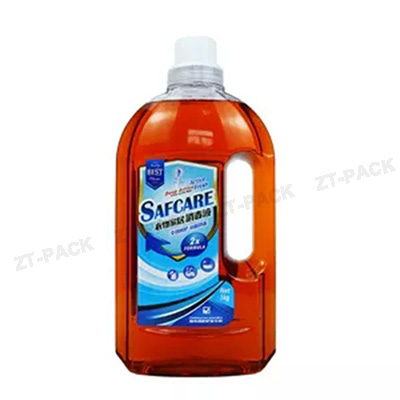

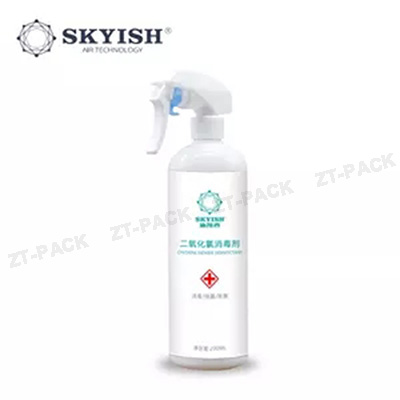

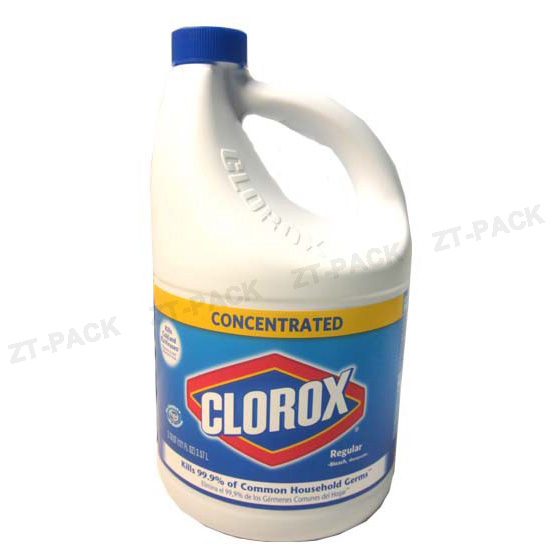

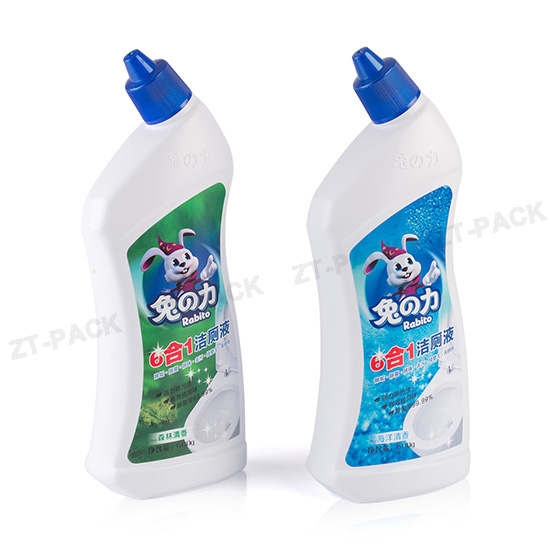

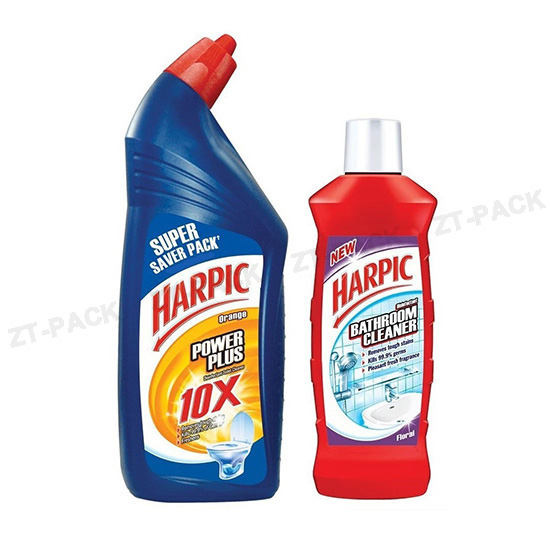

Applicable Bottle Types

Technical Parameters

Capacity	7200 (100ml) b/h
Filling Volume	50-1000ml
Measurement Precision	±1%
Applicable Bottle Diameter	40-100mm
Applicable Bottle Height	60-300mm
Air Pressure	0.6-0.8Mpa
Total Power	1.5Kw
Voltage	AC220V, 50/60Hz
Net Weight	750kg
Dimension	2000(L)×1030(W)×2300(H)mm

Model	ZGP-6G	ZGP-8G	ZGP-10G	ZGP-12G	ZGP-16G
Dimension	2000×710×2200mm (L×W×H)		2200×710×2200mm (L×W×H)		2300×710×2200mm (L×W×H)
Filling Head	6	8	10	12	16
Capacity (1L)	1800B/H	2000 B/H	2800 B/H	3200 B/H	4500 B/H
Power	1KW	1 KW	1KW	1.5KW	1.5KW
Suitable Bottle	Diameter: Φ40mm——Φ100mm Height: 80mm——280mm
Filling Accuracy	≤100ml: + -1.5ml
	100-500ml: + -2ml
	500-1000ml: + -3ml
Neck Diameter	Φ18mm
Filling Range	50ml——1000ml
Air Pressure	0.6Mpa
Power Supply	220V, 50HZ
