Corrosive Liquids Filling Machine（5L-20L)

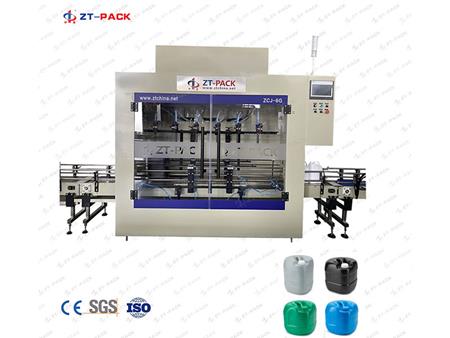

Corrosive Liquids Filling Machine（5L-20L)

This line is suitable for packing 5L -20L acid bleach products, acid, toilet cleaner, corrosive liquids, etc.
This machine is used for the automatic low viscosity liquid filling in 5L -20L

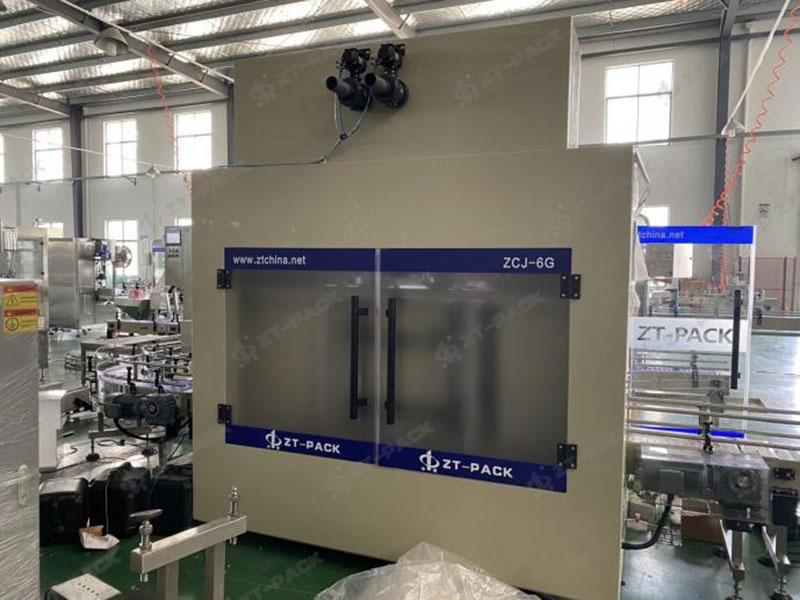

The machine is a full corrosion-protecting high-tech filler integrating in the PLC program control, photo electricity transuding and pneumatic. The machine is specially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal. The equipment’s all parts touching liquid are manufactured with the non-metallic corrosion protection material, and designed the descending filling function. Measurement accurate, there is not bubble and drool as filling.

Inquiry

Features

The weighing filling machine is made of PVC.
The machine uses a PLC with touchscreen as its control system. electrical control panel 2-3 meters far away from filling machine in case any problem, will not damage for control parts

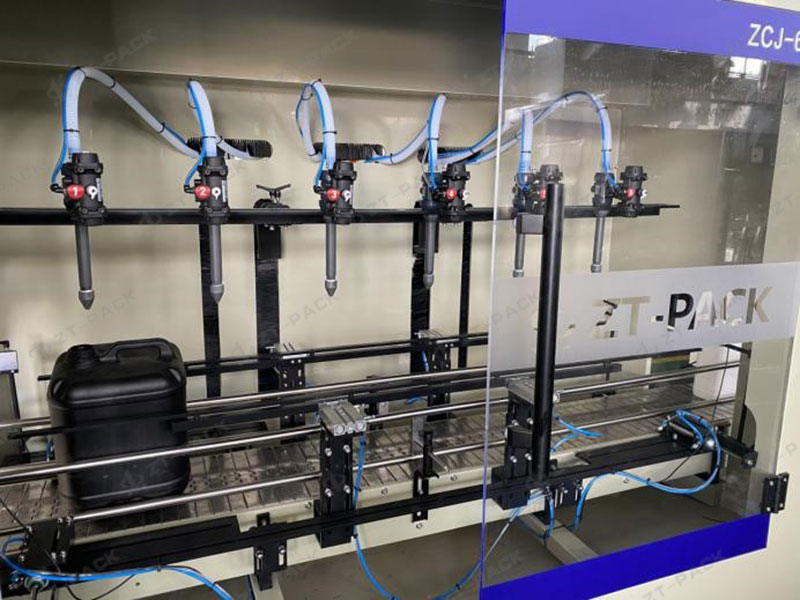

The diving nozzle is designed to prevent bubble formation.
The machine is easy to take apart and clean for routine maintenance.
An alarm will sound in the event of machine failure.
Flexible operation: suitable for filling bottles in a range of 5 to 20L in capacity.

Specifications

Model	ZCJ-6	ZCJ-8
Dimension	220016002400mm	240016002400mm
Filling head	6	8
Capacity（5L）	550B/H	650 B/H
Capacity（20L）	400B/H	500 B/H
Power	2kW	2.5kW
Suitable bottle	length:160-360mm width:100-300mm height:250-500mm
Filling System	Gravity Time Control Filling System
Barrel neck diameter	≥Φ40mm
Filling error	≦±1%F.S
Filling range	5L-20L
Air pressure	0.6-0.8 Mpa
Power supply	220V,50Hz	220V,50Hz

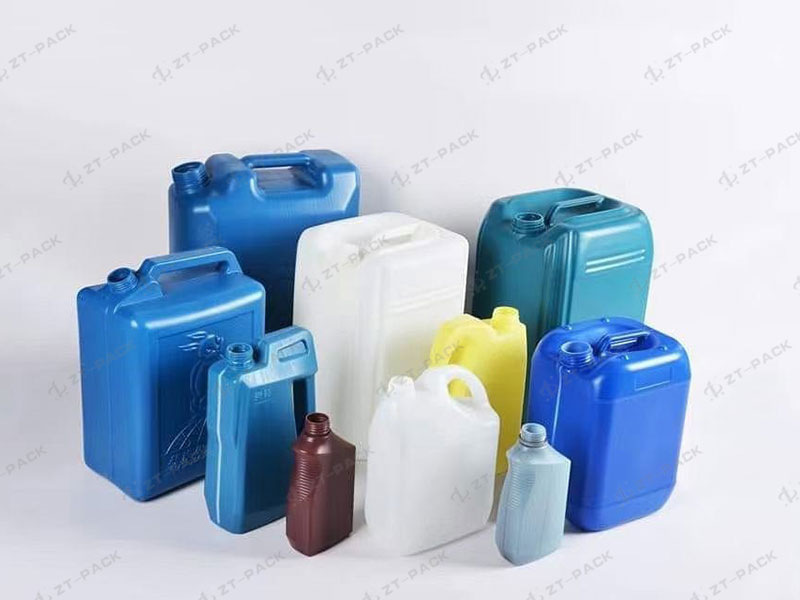

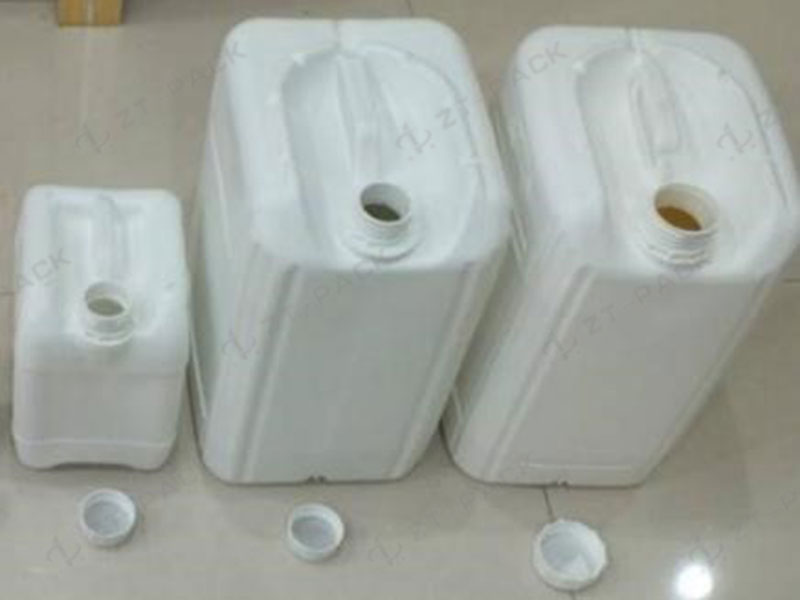

Applicable Bottle Types
