Suitable for Filling: Insecticide / pesticide / fertilizer / chemicals / agrochemical products , etc.

Filling Range: 50ml-1000ml

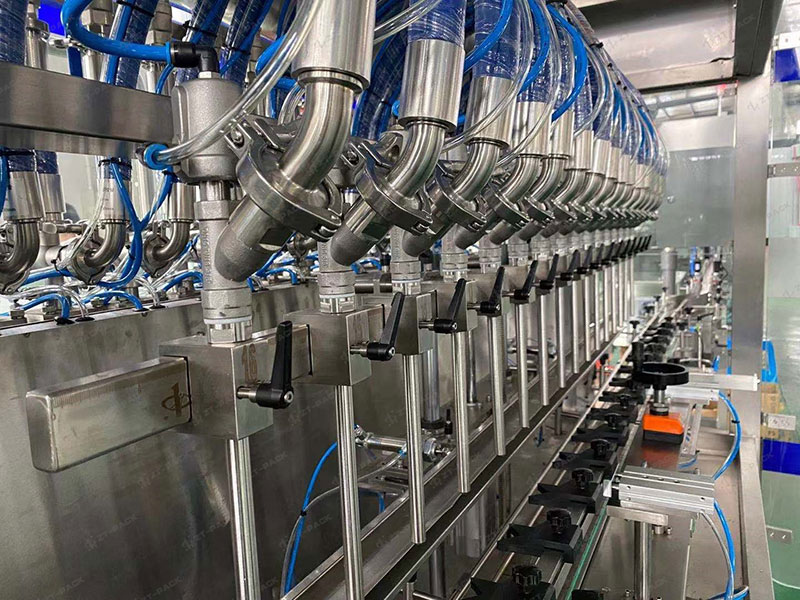

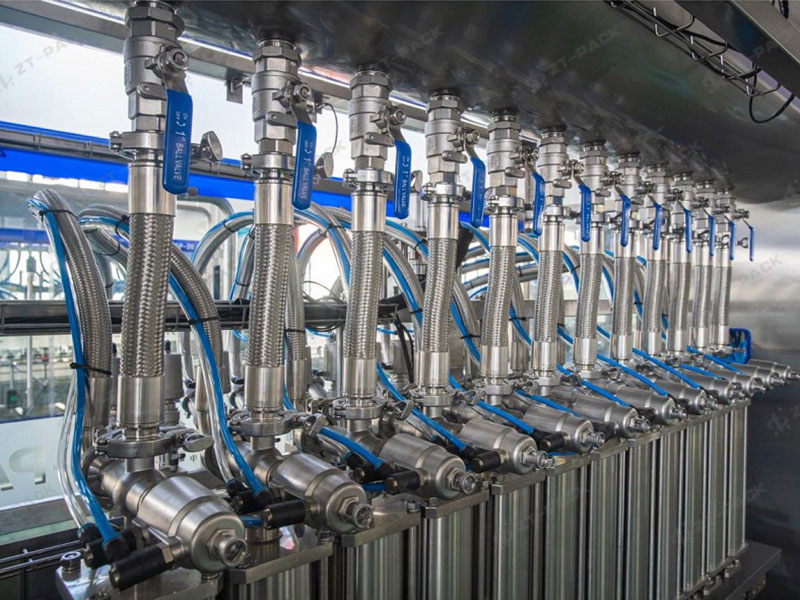

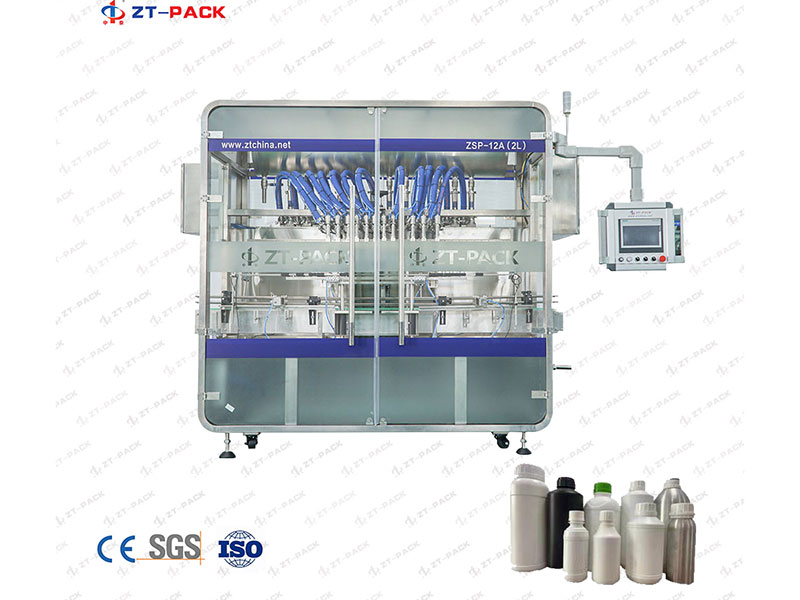

This machine is a Servo Piston Type filling machine with high filling accuracy. It applies 50ml-1000ml liquid for filling.
It is widely use for agrochemical SC，pesticide , SC Filling Packing
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.

Inquiry

Features

Only 2-3 workers are needed to operate the whole filling line, which reduces labor intensity and labor cost.
The filling speed is 1000-6000 bottles/hour, which can be customized based on customer needs.
The average filling accuracy is ±0.2%, minimizing filling material waste.
The filling machine is made of stainless steel, durable and aesthetically pleasing

Specifications

Model	ZSP-6A	ZSP-8A	ZSP-10A	ZSP-12A	ZSP-16A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)		2300mm(L)x1100mm(W)x2200mm(H)		2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8	10	12	16
Capacity(1L)	1500B/H	2300 B/H	2800 B/H	3200 B/H	4500 B/H
Power	2.2KW	2.2KW	2.2 KW	3KW	3KW
Suitable bottle	Diameter:Φ40mm--Φ100mm Height:80mm--280mm
Neck diameter	Φ18mm
Filling range	50ml--1000ml (from ZT-PACK)
Filling System	Piston Type
Air pressure	0.6Mpa-0.8Mpa
Power supply	380V, 50HZ / 60HZ

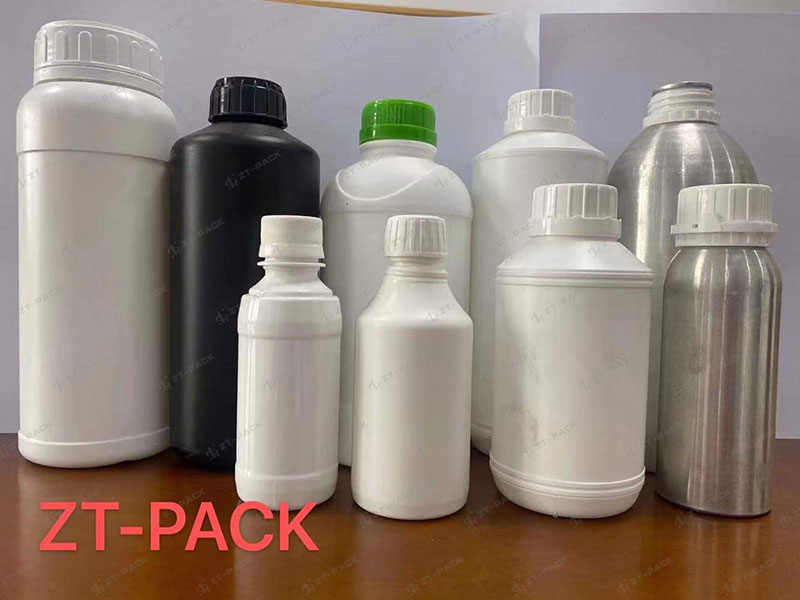

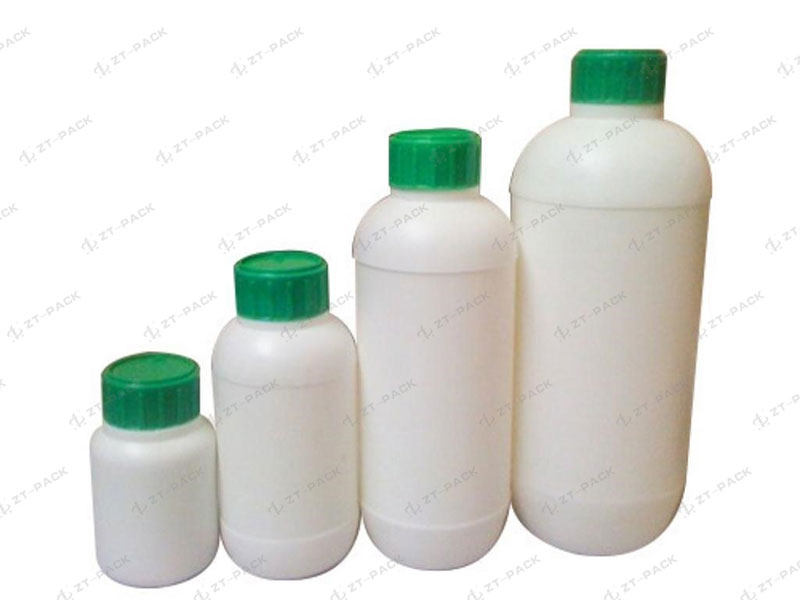

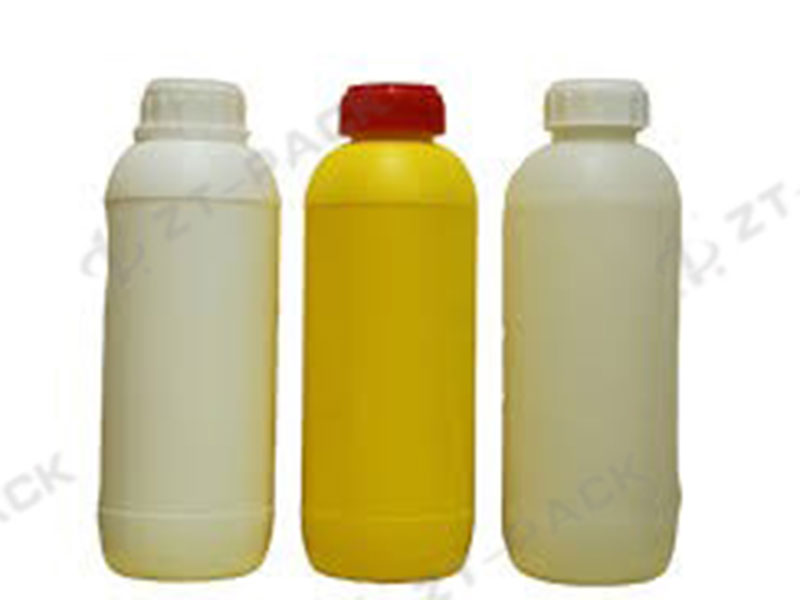

Applicable Bottle Types
