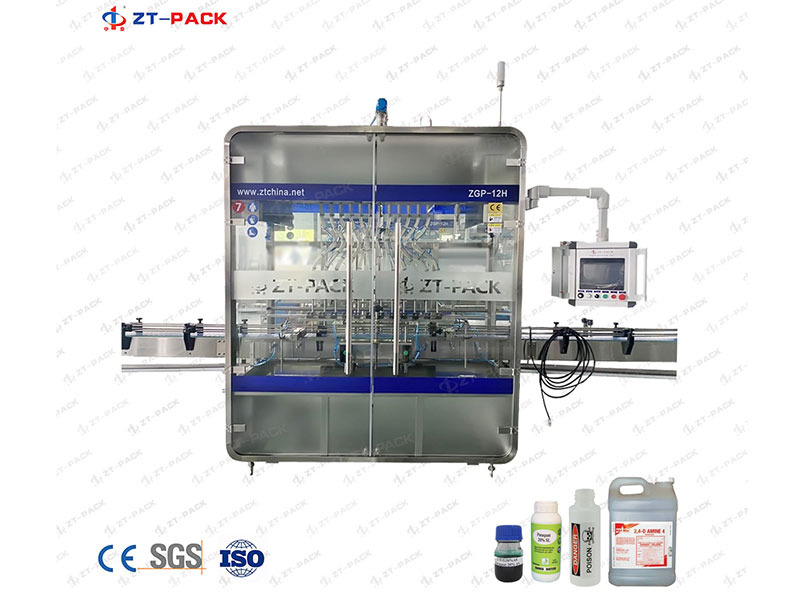

50ml-5000ml Low Viscous EC Gravity Filling Machine

Suitable for Filling: pesticide / paraquat / fertilizer/ EC / Sl / chemicals / agrochemical products, etc.

Filling Range: 50ml-5000ml

Time gravity filling machine is the most economical type of time filling machine for a limited range of applications. This time filling machine is best suited for liquids with very thin viscosities that do not change with ambient temperature or with batch variation.

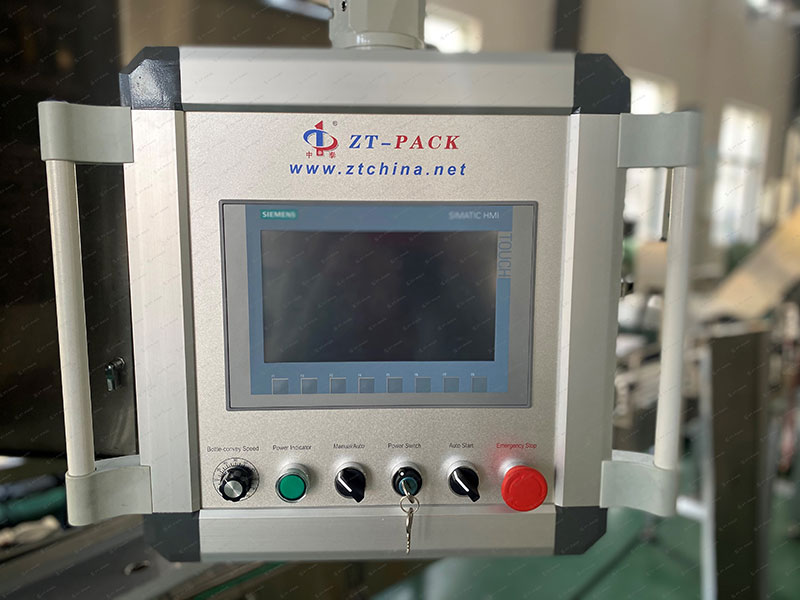

Automatic gravity filling machine working by time control from program and liquid flow from tank to nozzles freely. Machine controlled by PLC and HMI,each nozzle can adjust liquid volume separately to make more accuracy. Machine tank with level sensor to check how much liquid inside, when liquid not enough machine will feed automatically, when liquid enough in tank machine will stop feeding.

Inquiry

Features

It applies 50ml-5000ml liquid for filling low viscous products .
It is widely use for agrochemical EC，SL Filling Packing
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
Its speed is 1000-6000 bottles/hour, which can be customized according to demand.
The average filling accuracy is ±0.2%, the accuracy is accurate, and unnecessary waste is reduced.
The whole line is made of stainless steel, with beautiful appearance and high appearance. Customers can visit it.
The whole line can be operated by 2-3 people, which can reduce labor intensity and labor cost.

Specifications

Model	ZGP-6G	ZGP-8G	ZGP-10G	ZGP-12G	ZGP-16G
Dimension	2000×710×2200mm (L×W×H)		2200×710×2200mm (L×W×H)		2300×710×2200mm (L×W×H)
Filling head	6	8	10	12	16
Capacity（500mL）	1500B/H	2000 B/H	2500 B/H	3000 B/H	4000 B/H
Power	1KW	1 KW	1KW	1.5KW	1.5KW
Suitable bottle	Diameter：Φ40mm——Φ100mm Height：80mm——280mm
Filling accurate	≤100ml：+ -1.5ml 100-500ml：+ -2ml 500-1000ml：+ -3ml
Neck diameter	≤Φ10mm ( can be designed accordingly)
Filling range	50ml——5000ml （from ZT-PACK）
Filling System	Gravity Time Control
Air pressure	0.6Mpa
Power supply	220V, 50Hz / 60Hz

Suitable for Filling
