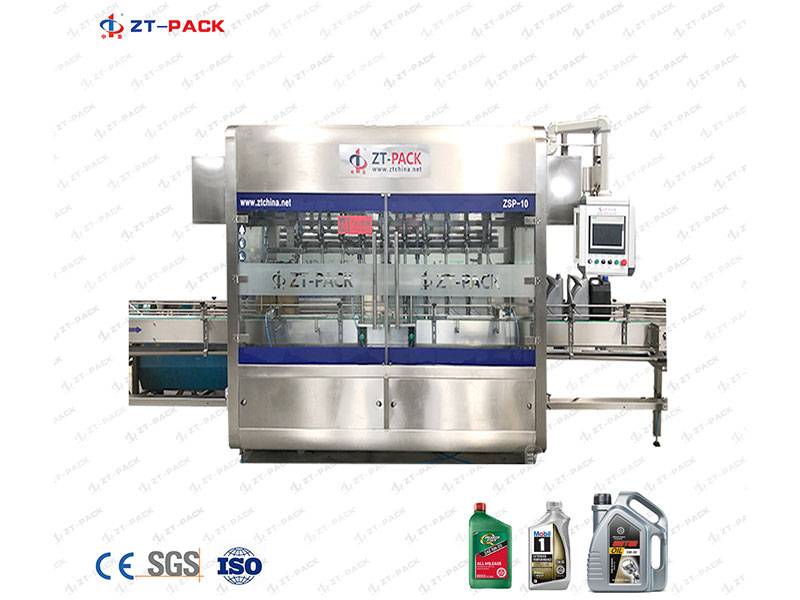

Flow Meter Lubricant Oil Filling Machine (0.5L-5L)

Home
Packaging Machines
Filling Machines
Lubricant Oil Filling Machine
Flow Meter Lubricant Oil Filling Machine (0.5L-5L)

Suitable for Filling: lubricant oil / car oil / motor oil / coolant liquid / engine oil /brake oil, etc.

Filling Range: 0.5L-5L

This machine is a Flow Meter Type filling machine with high filling accuracy. It applies to 0.5-5L liquid for filling.
Filling system can be choose: Flow meter /piston /Net weight
Widely use for lubricant oil packing industries
The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 4/ 6/ 8 /12 nozzles.

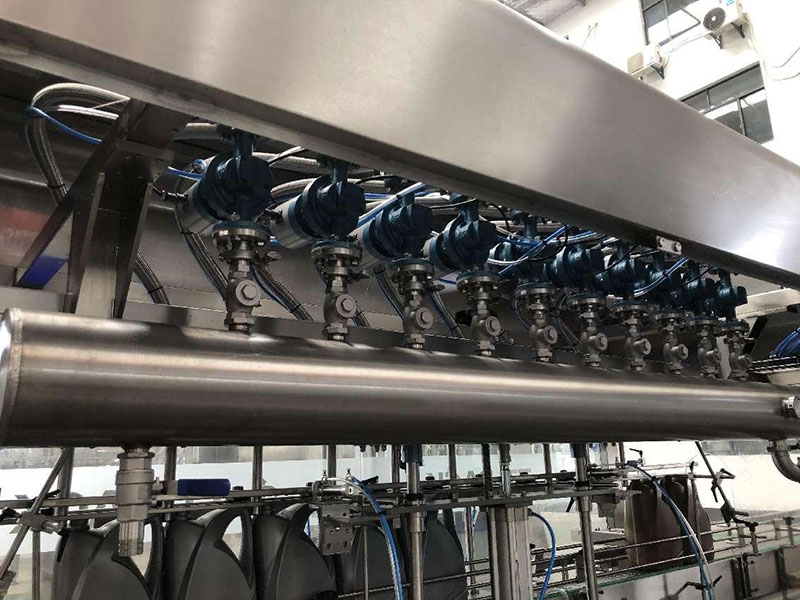

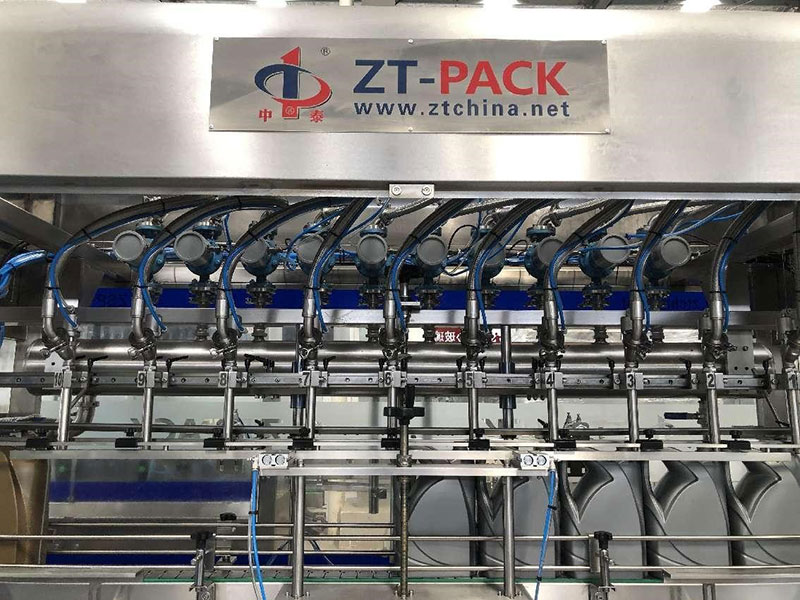

The filling volume is controlled by flow meter and gear pump, good filling accuracy and high filling speed.
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.

Inquiry

Specifications

Model	ZT-FM
Nozzle Number	4	6			8					12
Filling volume	500ml-5L(From ZT-PACK)
Production capacity	300-4000pcs/Hour (Depend on filling volume and filling head)
Quantitative error	≤±0.5%
Voltage	AC200V / 380±10% ; 50HZ/60HZ
Filling method	By Flow meter system
Consumed power	3		6			9			12
Air pressure	0.6Mpa--0.8Mpa
Power supply	1.5kW			2.2kW			3kW	4kW

Applicable Bottle Types
