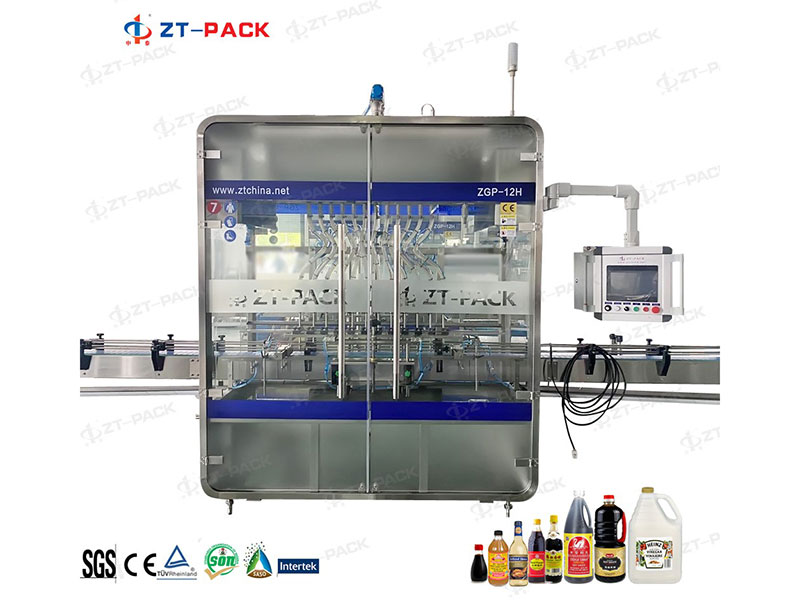

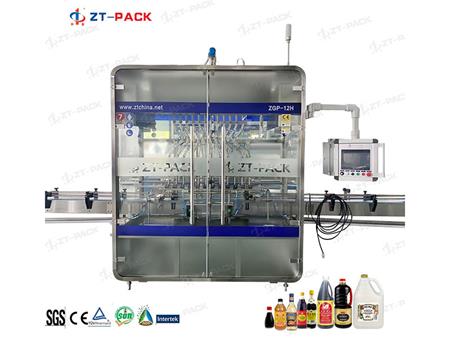

Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine

Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine

Suitable for Filling: vinegar / soy sauce flavor water / alcohol / cooking wine / apple cider vinegar, etc.

Filling Range: 100ml-5000ml

Time gravity filling machine is the most economical type of time filling machine for a limited range of applications.This time filling machine is best suited for liquids with very thin viscosities that do not change with ambient temperature or with batch variation. Water, vinegar, soy sauce, oil, alcohol, solvent, mouth wash, cleaner, bleach are good examples and even corrosive liquid and chemicals.

Inquiry

Specifications

Model	ZGP-6H	ZGP-8H	ZGP-10H	ZGP-12H	ZGP-16H
Dimension	2000×710×2200mm (L×W×H)		2200×710×2200mm (L×W×H)		2300×710×2200mm (L×W×H)

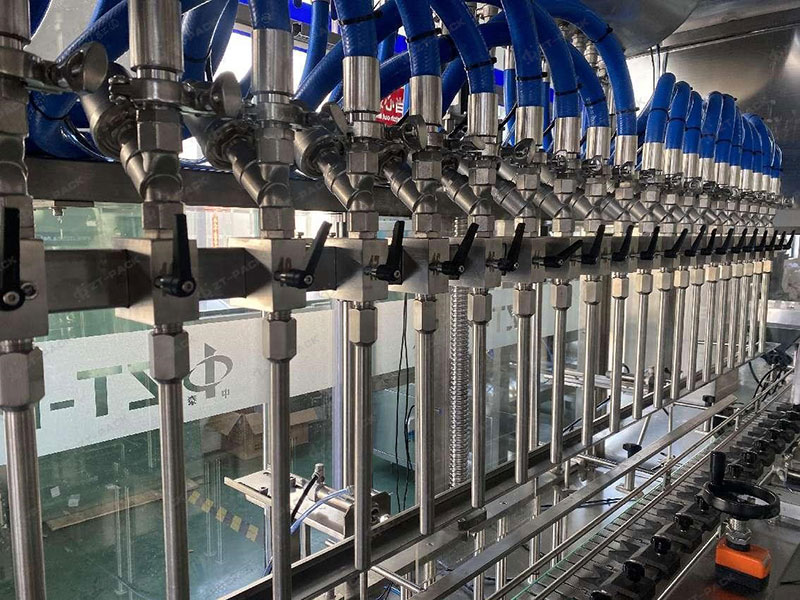

Filling head	6	8	10	12	16
Capacity（500mL）	1500B/H	2000 B/H	2500 B/H	3000 B/H	4000 B/H
Power	1KW	1 KW	1KW	1.5KW	1.5KW
Suitable bottle	Diameter：Φ40mm——Φ100mm Height：80mm——280mm
Filling accurate	≤100ml：+ -1.5ml 100-500ml：+ -2ml 500-1000ml：+ -3ml
Neck diameter	≤Φ10mm ( can be designed accordingly)
Filling range	100ml——5000ml （from ZT-PACK）
Filling System	Gravity Time Control
Air pressure	0.6Mpa
Power supply	220V, 50Hz / 60Hz

Suitable for Filling

Soy Sauce

Vinager

Cooking Wine
