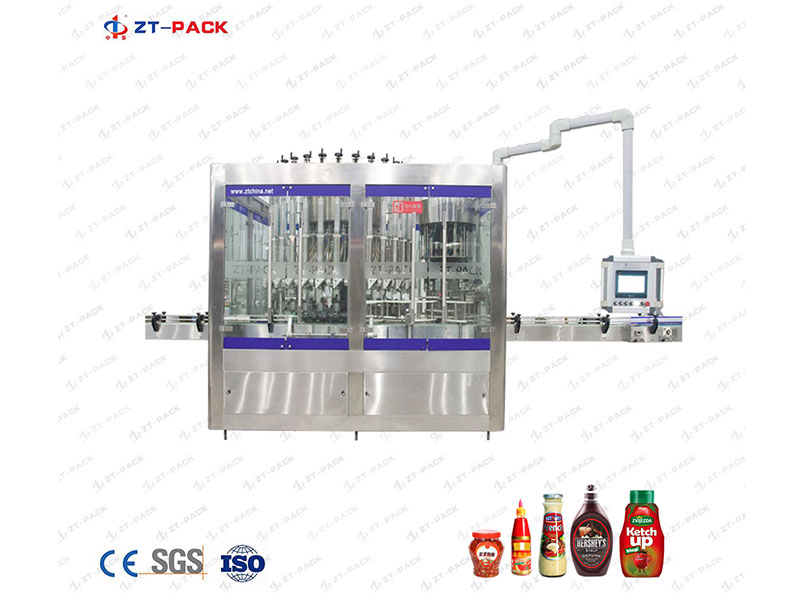

8000BPH Ketchup Sauce Rotary Filling Machine

Suitable for Filling: ketchup / tomato paste /salad dressing /sauce /jam / viscous foods, etc.

Filling Range: 100ml-1000ml

This is our traditional 2 in 1machine, which is suitable for 100ml~1000ml round and irregular bottles. The advantage of this machine features compact design, easy operation, simple maintenance, and durable accessories. Working stable and high accuracy, the outer frame are all high quality stainless steel, meet GMP standard.

Inquiry

Features

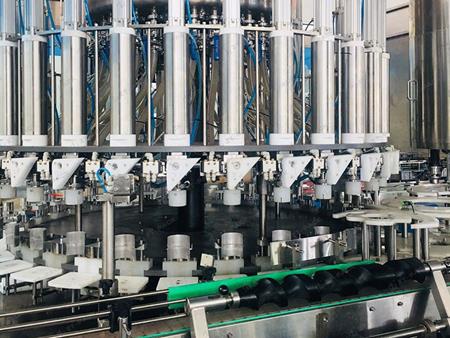

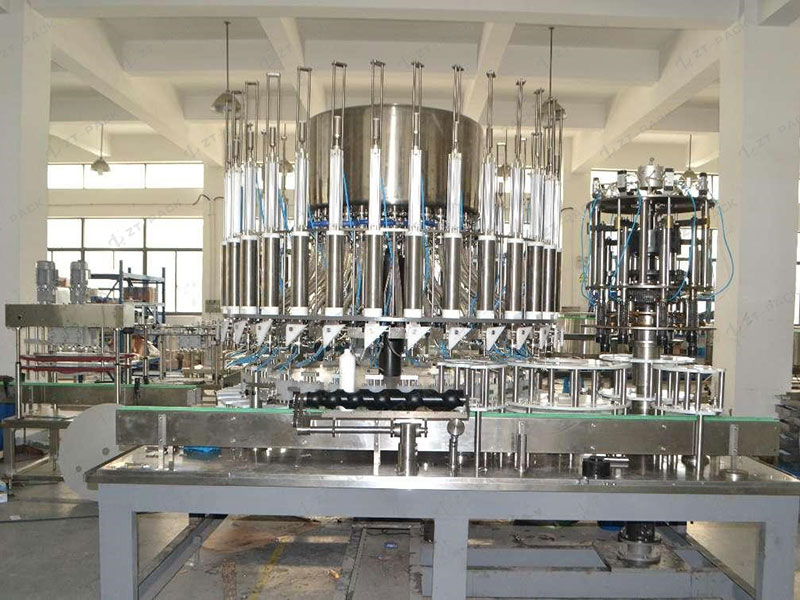

Rotary piston filling and capping machine is new-generation quantitative filler.
This machine is suitable for foodstuff, medicinal, cosmetic, chemical industry and pesticide industry.
Filling part controlled by PLC and touch screen, adopt piston for filling.
Capping part with inlet bottle, sorting cap, feeder cap, capping and outlet bottle.
Dispatch cap in high speed. Bottle and cap synchronous operation. With super high productivity and high automation, the rotary piston machine is new-generation quantitative filler.
This machine is an integration of mechanics and electrics. It is automatically controlled by PLC and touch screen controlled panel. It is an ideal model which integrates mechanical, electrical, light and gas.

Specifications

Model	32-8
Filling Type	Piston
Capping Type	Pick and Place
Filling head	32
Capping head	8
Suitable bottle	Φ40mm-Φ110mm
Height	80mm-320mm
Packaging specification	100ml-1000ml
Production capacity	≤8000B/H
Filling error	50-200m

Suitable for Filling
