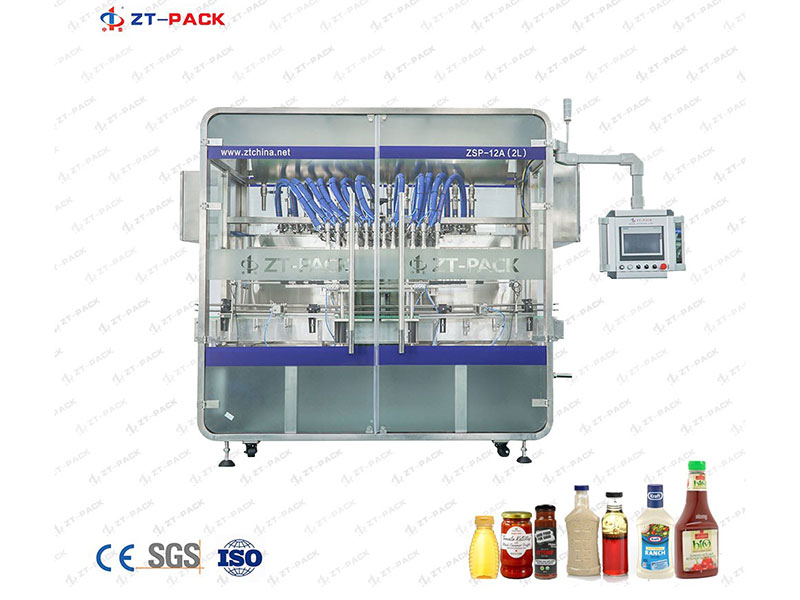

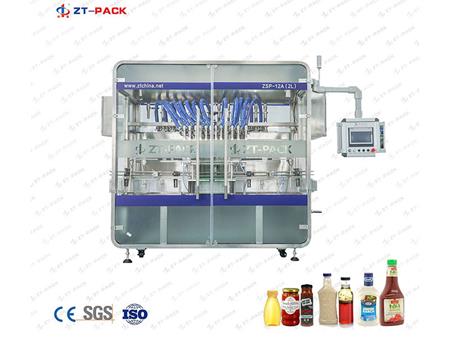

Sauce Jam Food Filling Machine

Suitable for Filling: sauces / ketchup / salad dressing / honey / jam sauce / bean paste / viscous food, etc.

Filling Range: 50ml-1000ml / 1L-5L

This Machine is suitable for viscous Food Filling Packing

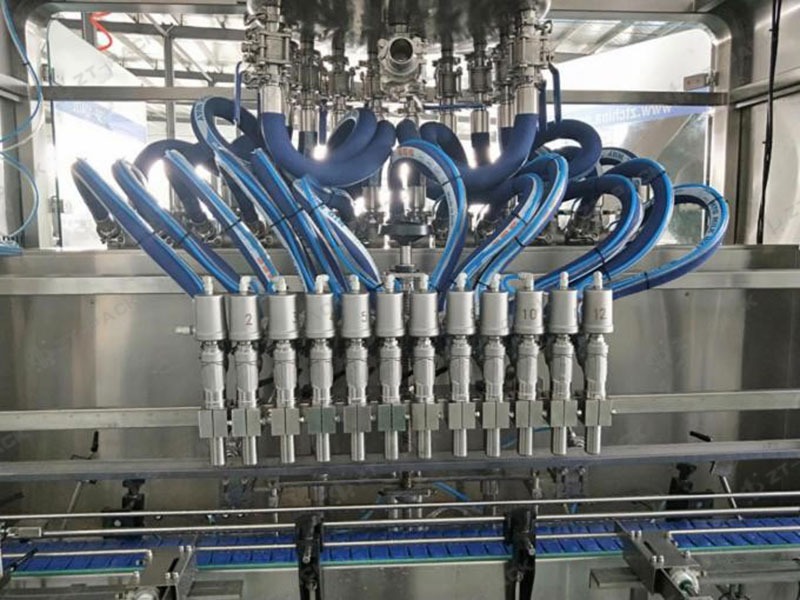

Piston type system with high accuracy 0.2% , and it is suitable for different sizes and shapes of bottles
For plastic and glass bottles Jars

For: Round & Flat Bottles It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
Food standard : With cleaning function + Food grade pipes + Quick clamps + Special tank

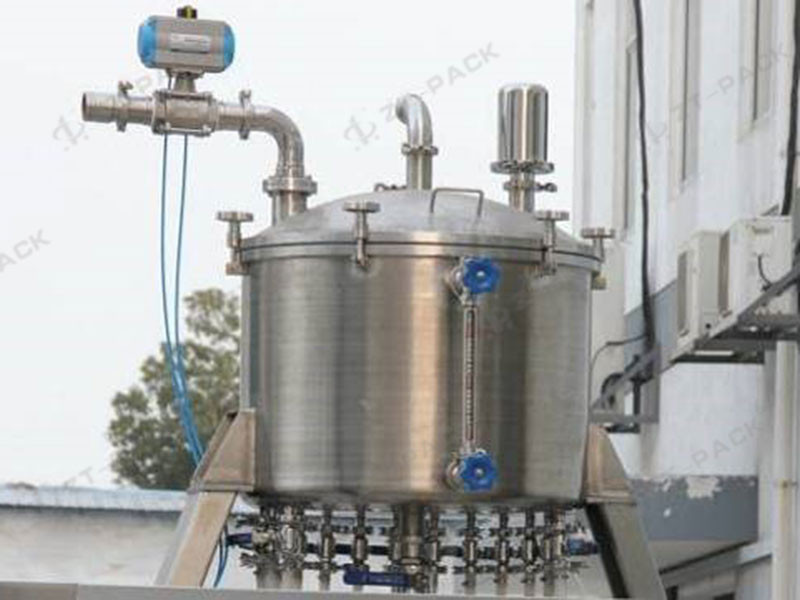

Horizonal type filling tank / vertical filling tank can be choose
Meet CIP requirements for cleaning and With mixing function
Food grade pipes can work for hot filling system
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.

Inquiry

Specifications

Model	ZSP-6A	ZSP-8A	ZSP-10A	ZSP-12A	ZSP-16A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)		2300mm(L)x1100mm(W)x2200mm(H)		2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8	10	12	16
Capacity(1L)	1500B/H	2300 B/H	2800 B/H	3200 B/H	4500 B/H
Power	2.2kW	2.2kW	2.2 kW	3kW	3kW
Suitable bottle	Diameter:Φ40mm--Φ100mm Height:80mm--280mm
Neck diameter	Φ18mm
Filling range	50ml--1000ml (from ZT-PACK)
Filling System	Piston Type
Air pressure	0.6Mpa-0.8Mpa
Power supply	380V, 50Hz / 60Hz

Specifications (1L-5L)

Model	ZSP-6A	ZSP-8A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)	2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8
Capacity(1L)	1800B/H	2500 B/H
Capacity(5L)	700B/H	1000 B/H
Power	3KW	4KW
Suitable bottle	Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm
Filling range	1L-5L (From ZT-PACK)
Filling Type	Piston system
Piston Size	5L
Air pressure	0.6Mpa--0.8Mpa
Power supply	380V, 50Hz / 60Hz

Suitable for Filling

Ketchup

Honey

Salad dressing
