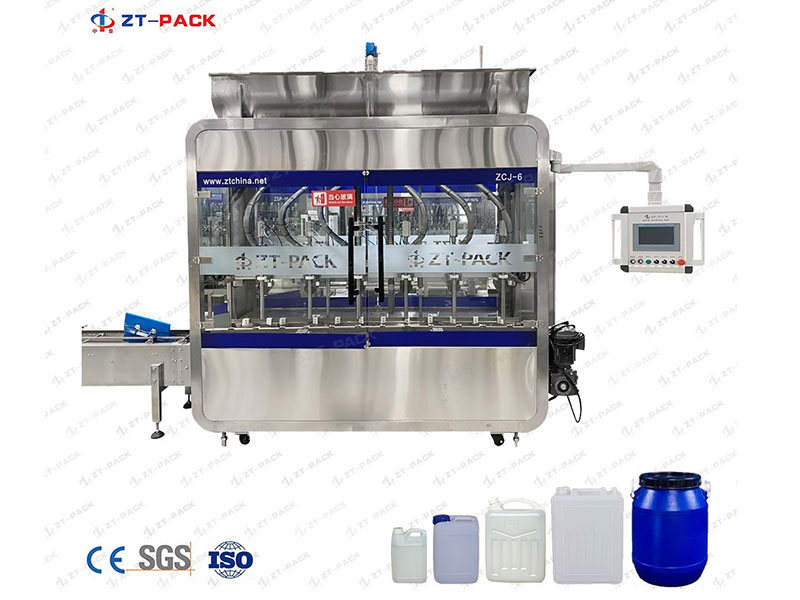

Flow Meter Filling Machine (5L-30L)

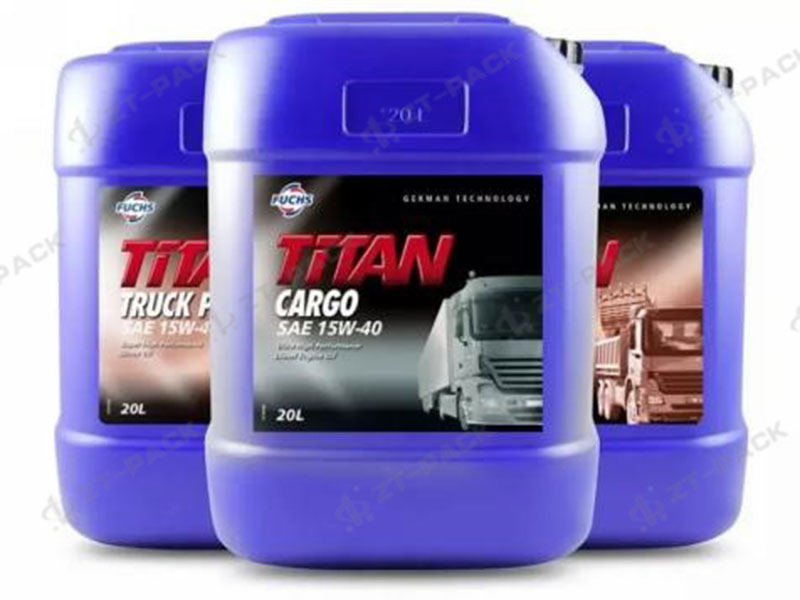

Suitable for Filling: lubricant oil / car oil / motor oil / coolant liquid / engine oil /brake oil / edible cooking oil, etc.

Filling Range: 5L -30L

This type filling system is flow meter type which is the better ideal for oils filling packing

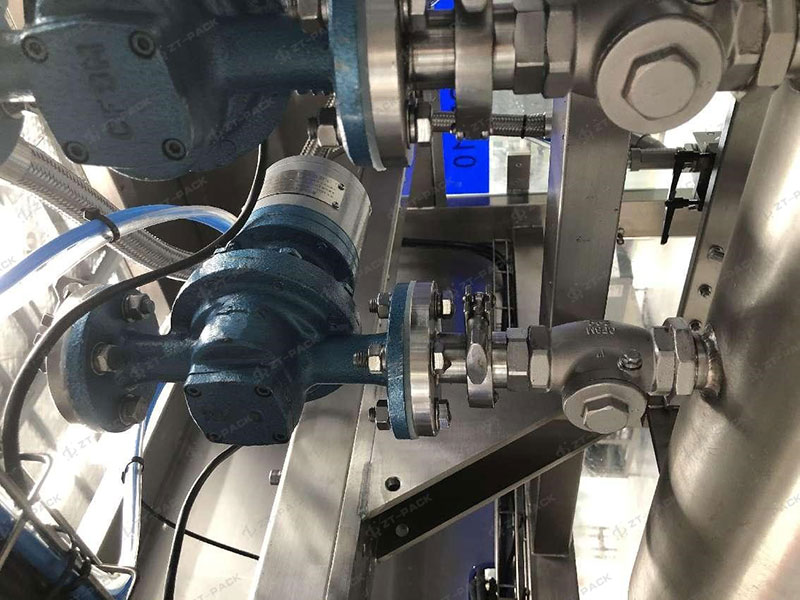

The principle of the elliptic gear flow meter is to measure the rotation of the elliptic gear by the pressure head of the measured medium.
The greater the viscosity of the medium, the smaller the leakage from the gear and the space gap, the greater the viscosity of the medium, the smaller the leakage error and the more favorable for the measurement.
The elliptical gear flow meter has high accuracy and is suitable for the measurement of the flow rate in the medium with high viscosity, especially for the filling of different labels and different viscosity.

Inquiry

Advantage of Flow Meter System

Quick Adjustment: The adjustment in dosage is convenience and quick, the volume only need to be set on the touch screen directly, considered that the vegetable oil is different in density in the different temperature, resulting in the volume setting different, we have added an automatic temperature-compensated system.
Filling Accuracy : instead of the traditional computing type of flow meter --through pulse generator, now promoted by our company, adopting rotary encode is more accurate.
Filling speed : instead of the traditional power delivery -- pressure artesian flow, our machine adopting frequency converter to adjust the speed of filling, the efficiency highly raised. The speed can be arbitrarily adjusted on panel. the adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touch screen.
It will not affected by the season, In summer and winter the oil all can be fill easily, not restricted by the viscosity of oil products, such as gear oil can also be easily filled. The more viscous material is, the more obvious the advantage of flow meter filling method is.

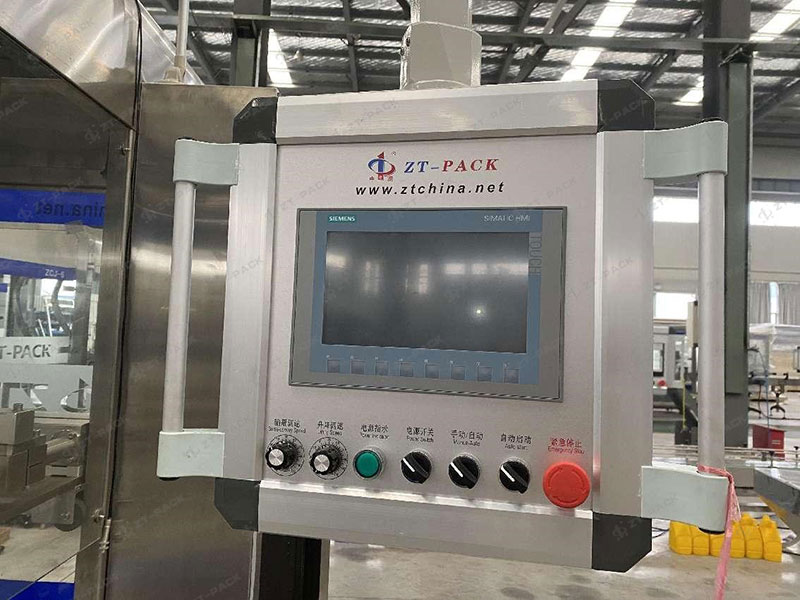

Easy Operate : The operation interface is simple, easy to learn and maintain, low requirements for field operators, use of startup and formula adjustment and one key solution
No wearing parts in the production process, mechanical transmission, The cost in use is lower.

Specifications

Model	ZCJ-6	ZCJ-8
Dimension	220016002400mm	240016002400mm

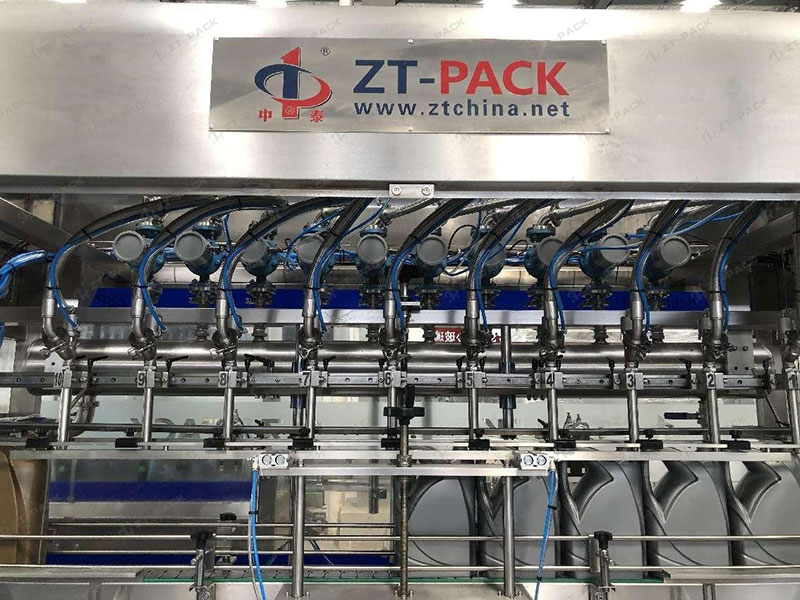

Filling head	6	8
Capacity（5L）	550B/H	650 B/H
Capacity（20L）	400B/H	500 B/H
Power	2KW	2.5KW

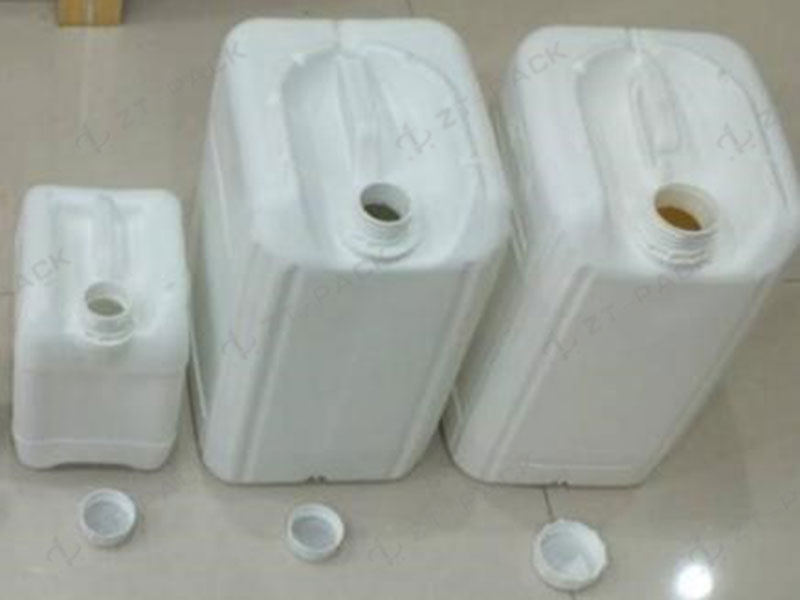

Suitable bottle	length:160-360mm width:100-300mm height:250-500mm
Filling System	Flow Meter Filling System
Barrel neck diameter	≥Φ40mm
Filling error	≦±0.5%F.S
Filling range	5L-30L
Air pressure	0.5-1 .0 Mpa
Power supply	220V, 50Hz	220V, 50Hz

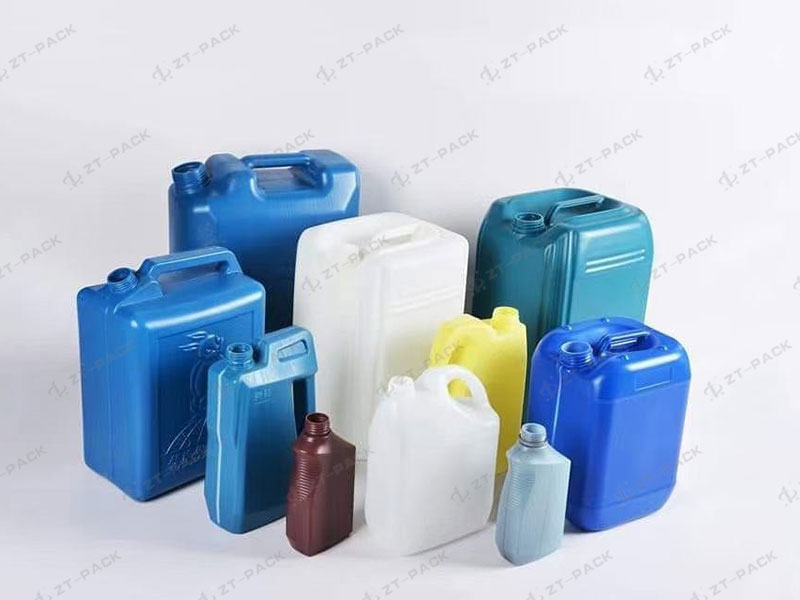

Suitable for Filling
