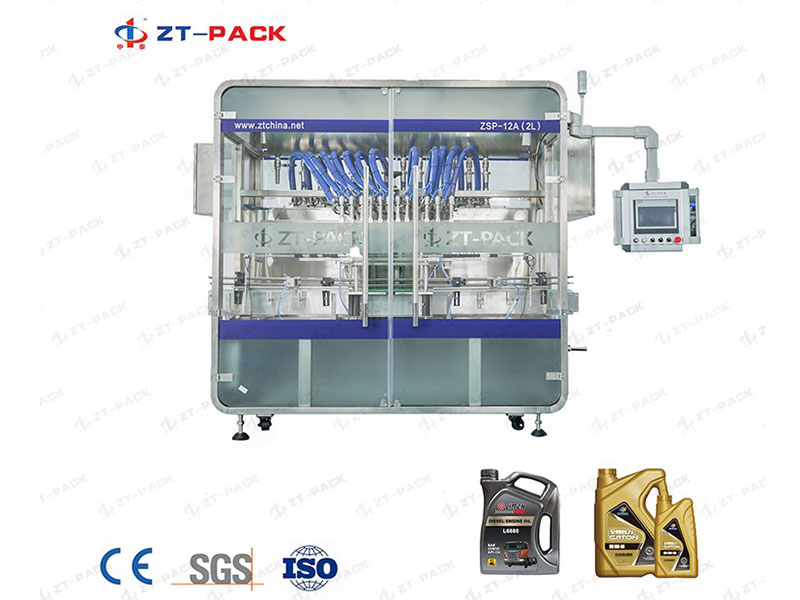

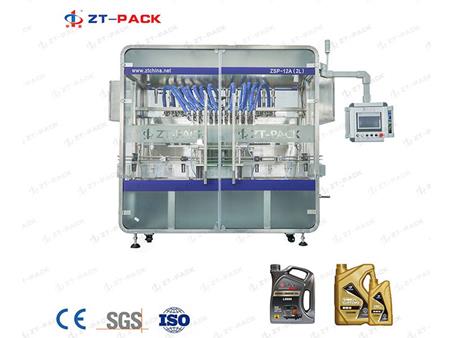

Lubricant Oil Filling Machine (0.5L-5L)

Suitable for Filling: lubricant oil / car oil / motor oil / coolant liquid / engine oil /brake oil, etc.

Filling Range: 0.5-5L

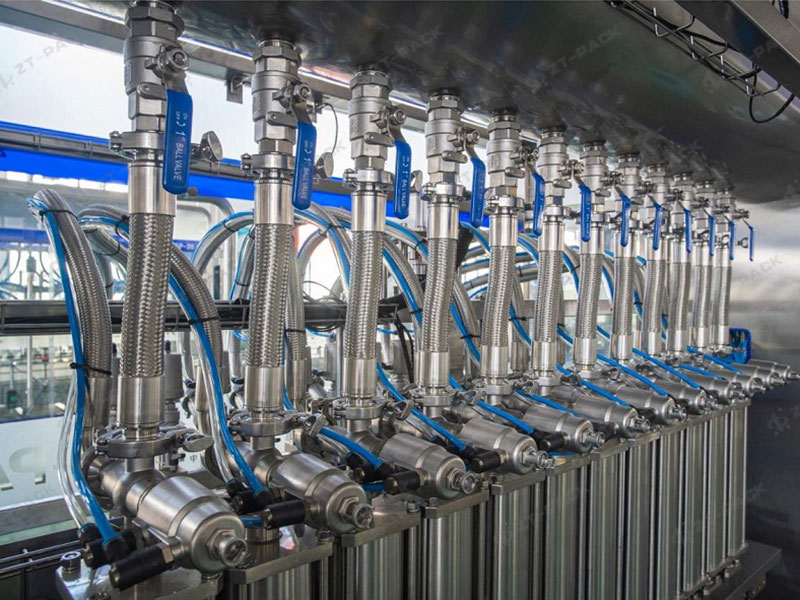

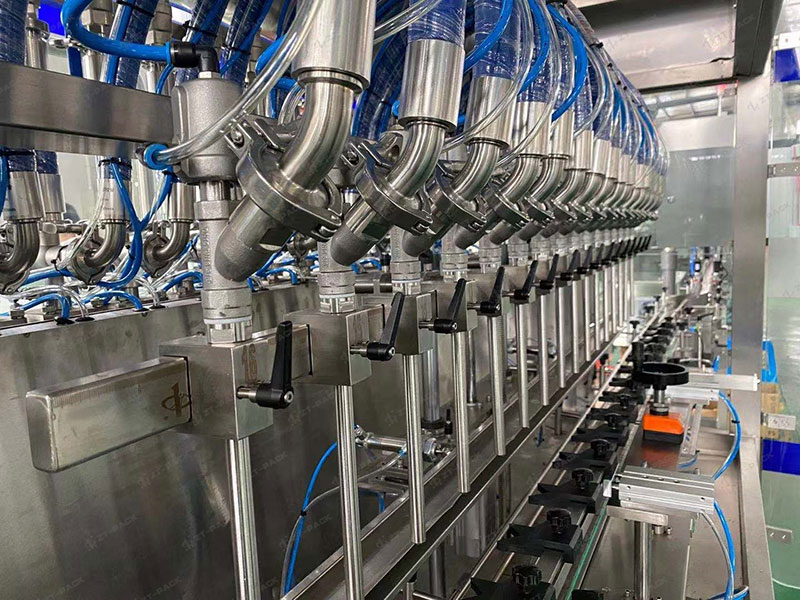

This machine is a piston Type filling machine with high filling accuracy. It applies to 0.5-5L liquid for filling.
Filling system can be choose: Flow meter /piston /Net weight
Widely use for lubricant oil packing industries
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.

Inquiry

Specifications

Model	ZSP-6A	ZSP-8A	ZSP-10A	ZSP-12A	ZSP-16A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)		2300mm(L)x1100mm(W)x2200mm(H)		2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8	10	12	16
Capacity(1L)	1500B/H	2300 B/H	2800 B/H	3200 B/H	4500 B/H
Power	2.2KW	2.2KW	2.2 KW	3KW	3KW
Suitable bottle	Diameter:Φ40mm--Φ100mm Height:80mm--280mm
Neck diameter	Φ18mm
Filling range	50ml--1000ml (from ZT-PACK)
Filling System	Piston Type
Air pressure	0.6Mpa-0.8Mpa
Power supply	380V, 50Hz / 60Hz

Applicable Bottle Types
