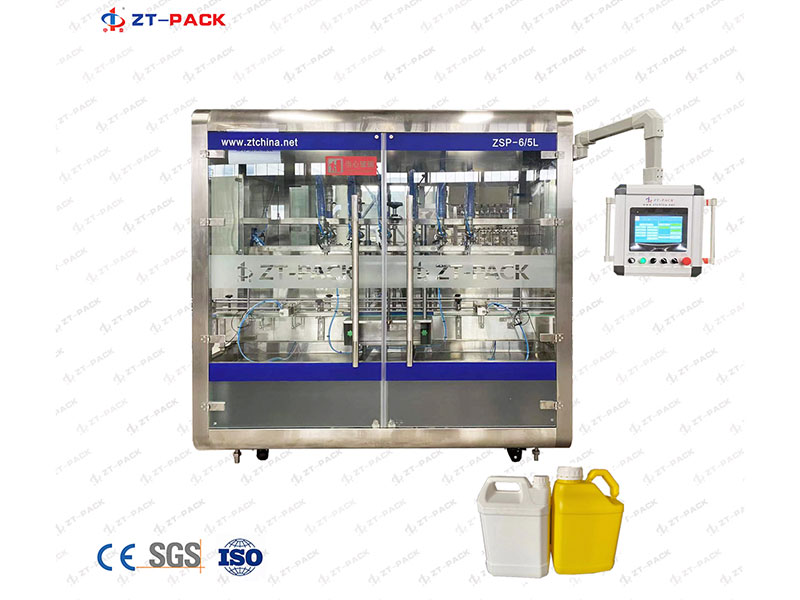

1L-5L Pesticide Servo Piston Filling Machine

Home
Packaging Machines
Filling Machines
Agro & Chemical Filling Machine
1L-5L Pesticide Servo Piston Filling Machine

Suitable for Filling: Insecticides, pesticides, liquid fertilizers, fertilizers, agrochemical products, etc.

Filling Range: 1L-5L

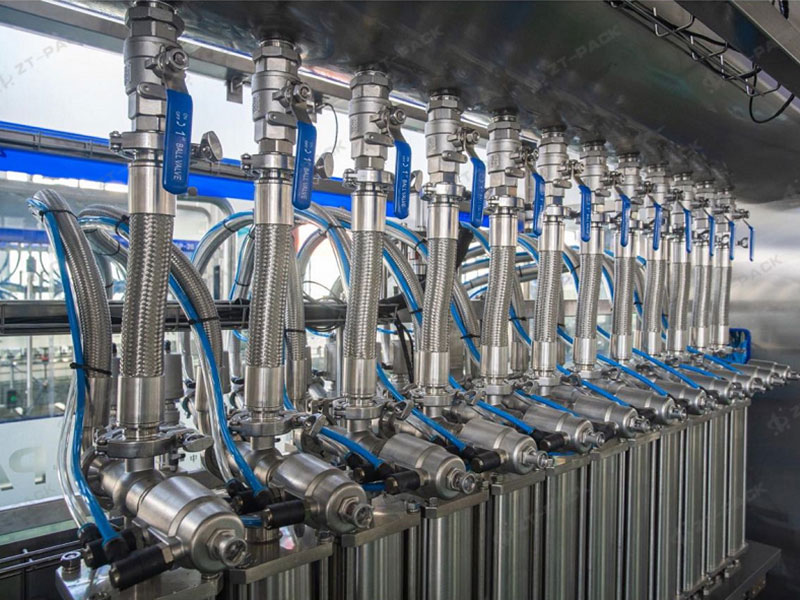

This machine is a Servo Piston Type filling machine with high filling accuracy.
It applies 1L-5L liquid for filling bottles and gallon.
It is widely use for agrochemical SC，pesticide , SC Filling Packing
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.

Inquiry

Features

Only 2-3 workers are needed to operate the whole filling line, which reduces labor intensity and labor cost.
The filling speed is 600-3000 bottles/hour, which can be customized based on customer needs.
The average filling accuracy is ±0.2%, minimizing filling material waste.
The filling machine is made of stainless steel, durable and aesthetically pleasing.

Specifications

Model	ZSP-6A	ZSP-8A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)	2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8
Capacity(1L)	1800B/H	2500 B/H
Capacity(5L)	700B/H	1000 B/H
Power	3KW	4KW
Suitable bottle	Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm
Filling range	1L-5L (from ZT-PACK)

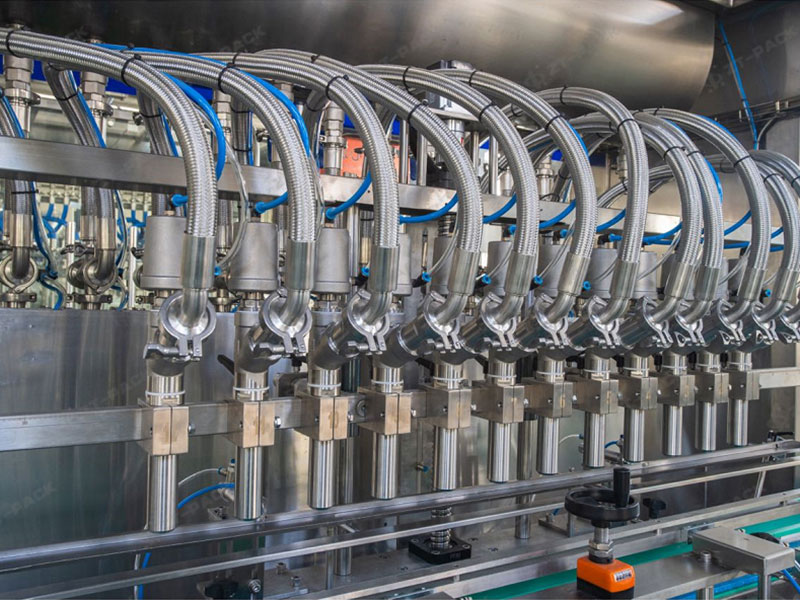

Filling Type	Piston system
Piston Size	5L
Air pressure	0.6Mpa-0.8Mpa
Power supply	380V, 50Hz / 60Hz

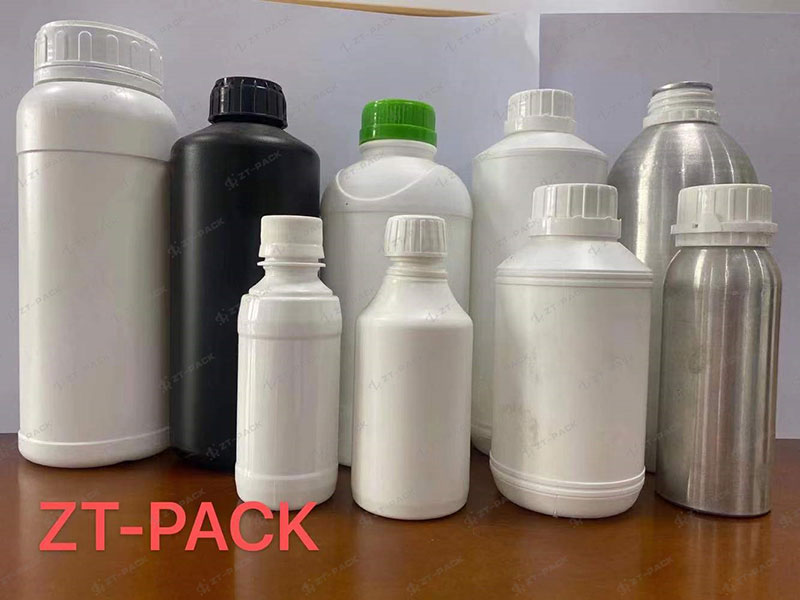

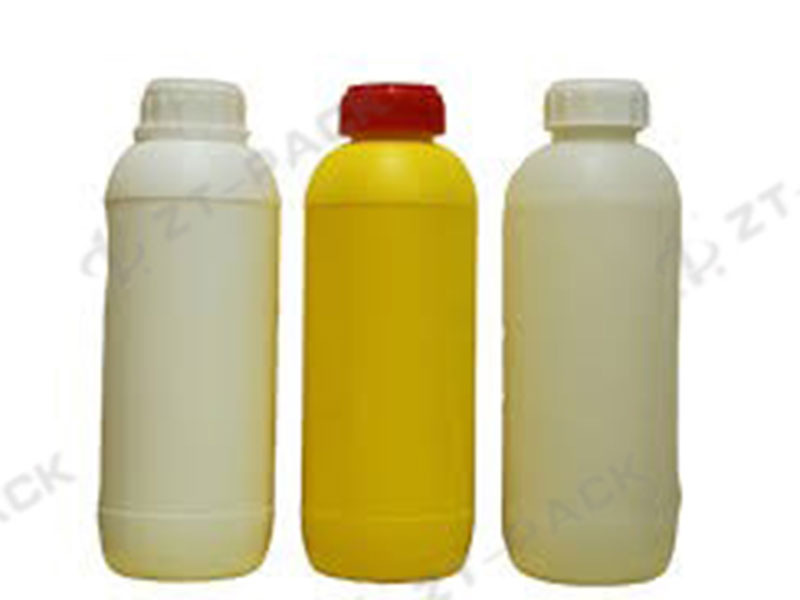

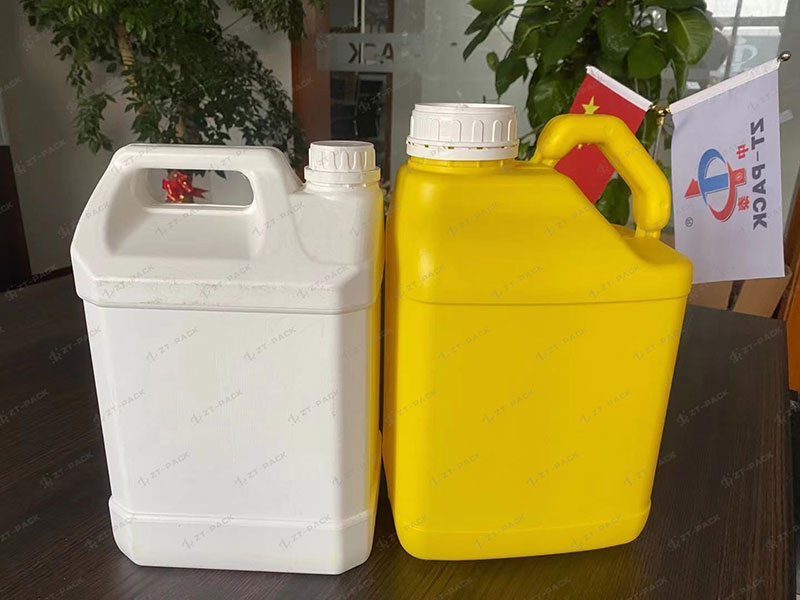

Applicable Bottle Types
