Oral Liquid Low Viscous Foamy Gravity Filling Machine

Suitable for Filling: glass cleaner / disinfectant / multi purpose cleaner / hand sanitizer alcohol liquid / mouthwash / air freshener / antiseptic and other low viscous kinds products

Filling Range: 100ml-5000ml

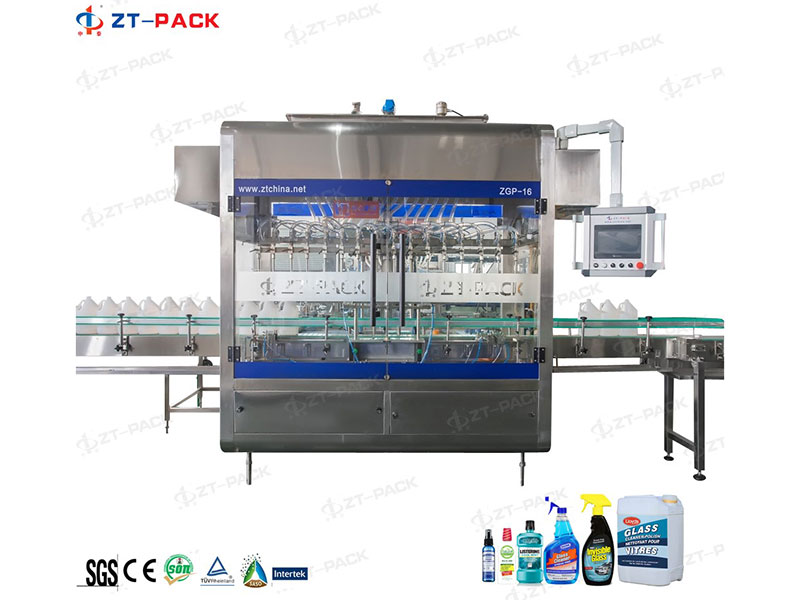

This is Gravity Type Time Control Filling Machine Suitable For : Low viscous density liquids such as: Caustic soda liquid / antiseptic / glass cleaner ... low viscous , foamy and no foamy liquids
With special function for foamy solution : Diving system + Foamy sucking system
To make sure the filling speed faster and filling level the same
It applies 50ml-5000ml liquid for filling low viscous products.
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
All the parts which contact with the filling material are made of stainless steel. The surface is polished. It has polished . It has nice appearance ,(in addition ,it may add full close equipment )

Inquiry

Advanced design

The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.
Short filling circle, high production capacity.
Changing filling circle, high production capacity.
User may choose the filling volume and decide the filling heads per own production capacity.

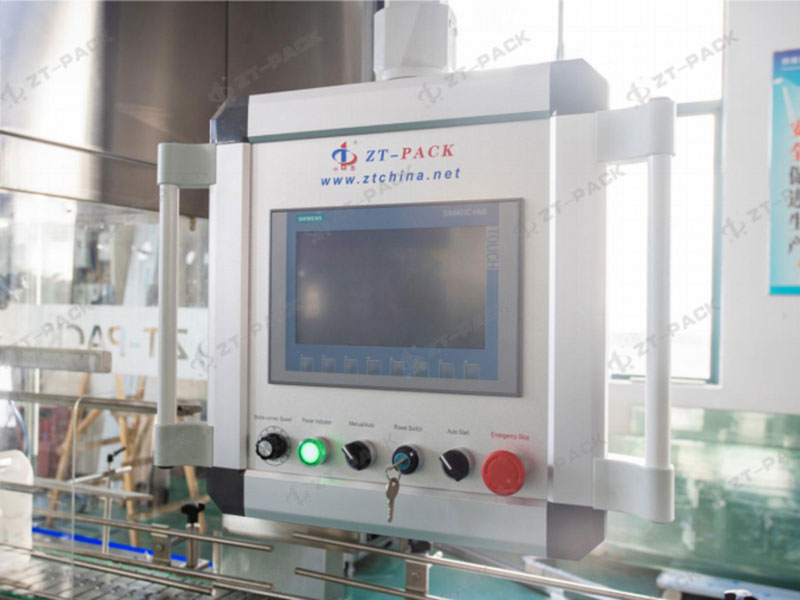

The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.

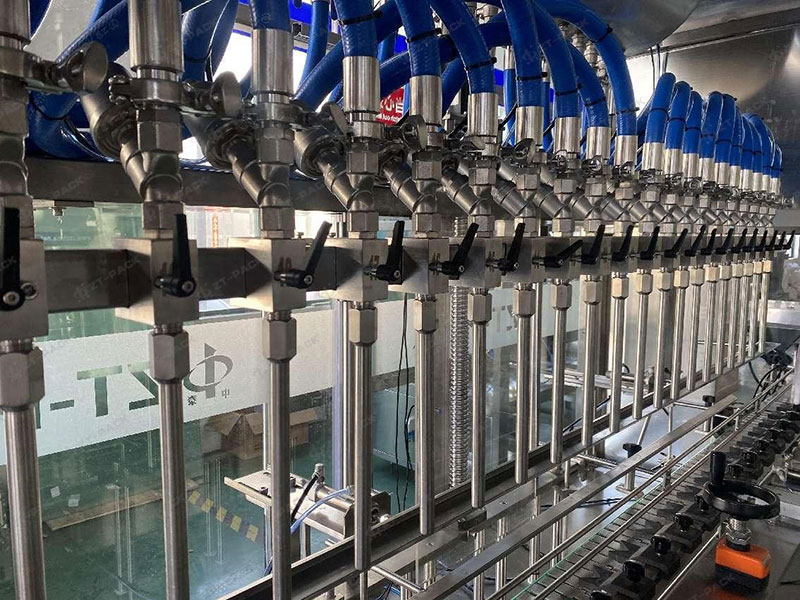

Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

Specifications

Model	ZGP-6H	ZGP-8H	ZGP-10H	ZGP-12H	ZGP-16H
Dimension	2000×710×2200mm (L×W×H)		2200×710×2200mm (L×W×H)		2300×710×2200mm (L×W×H)
Filling head	6	8	10	12	16
Capacity（500mL）	1500B/H	2000 B/H	2500 B/H	3000 B/H	4000 B/H
Power	1KW	1 KW	1KW	1.5KW	1.5KW
Suitable bottle	Diameter：Φ40mm——Φ100mm Height：80mm——280mm
Filling accurate	≤100ml：+ -1.5ml 100-500ml：+ -2ml 500-1000ml：+ -3ml
Neck diameter	≤Φ10mm ( can be designed accordingly)
Filling range	50ml——5000ml （From ZT-PACK）
Filling System	Gravity Time Control
Air pressure	0.6Mpa
Power supply	220V, 50Hz / 60Hz

Suitable for Filling
