Suitable for Filling: vaseline jelly / wax jelly, etc.
Filling Range: 30ml -200ml / 100ml-500ml

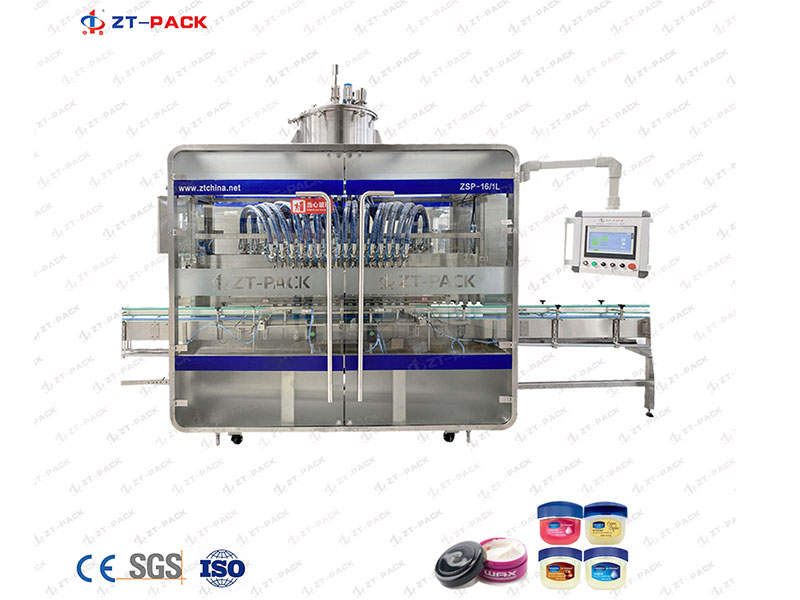

This machine is a piston Type filling machine with high filling accuracy.
Hot Filling with heating system is suitable for wax jelly kinds products filling and packing
With or without cooling system after filling system
Widely use for Personal Care cleaning products filling packing
With high accuracy , fast speed ,wider filling range can be shared for many different sizes viscous liquids packing
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
With Cleaning function for filling machine when change products to pack
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.
Model | |||||
Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2300mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) | ||
Filling head | 6 | 8 | 10 | 12 | 16 |
Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
Power | 2.2kW | 2.2kW | 2.2 kW | 3kW | 3kW |
Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm | ||||
Neck diameter | Φ18mm | ||||
Filling range | 30ml--500ml (From ZT-PACK) | ||||

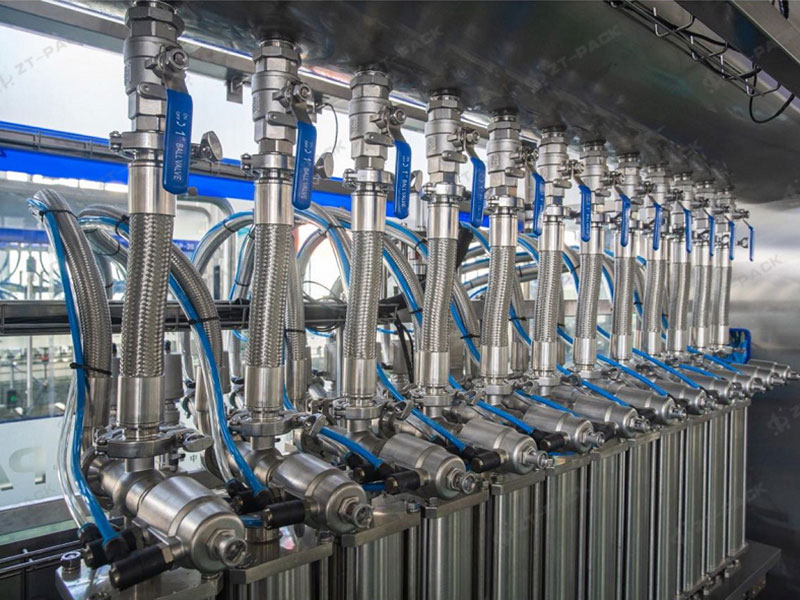

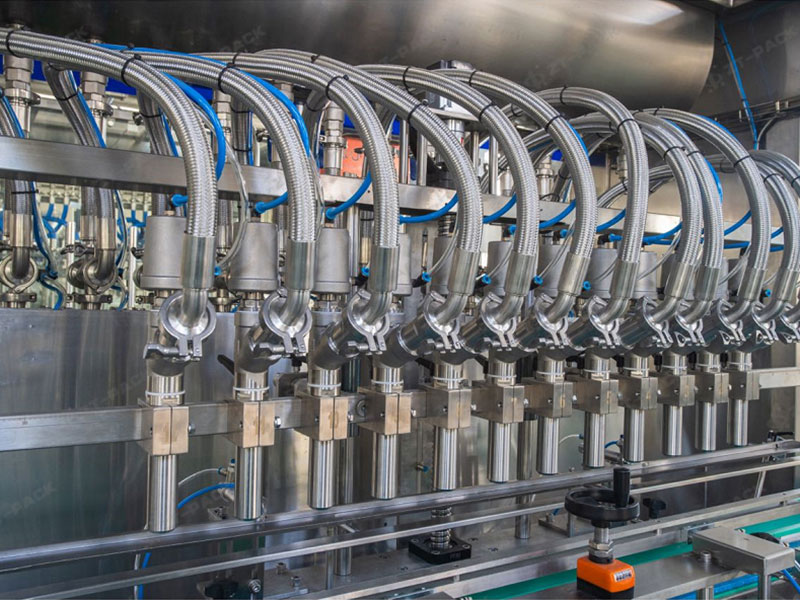

Filling System | Piston Type | ||||
Air pressure | 0.6Mpa-0.8Mpa | ||||
Power supply | 380V, 50Hz / 60Hz |
Zhongtai Packing Machinery Company develops high quality packaging and bottling production lines. From filling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers. Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods; beer, wine, soda, and other beverages; cosmetic and beauty care products such as lotions, creams, and shampoos; pesticides and other agrochemicals; and oils and gases. We help customers from over 30 countries around the world to package their products.
Zhongtai is a specialized filling and packaging equipment manufacturer, located within Jintai Economic Development Zone of Jiangsu Province. Our factory spans across 5,550 square meters. Our packaging machines are installed in over 20 provinces in China, Southeast Asia, and more overseas markets.
