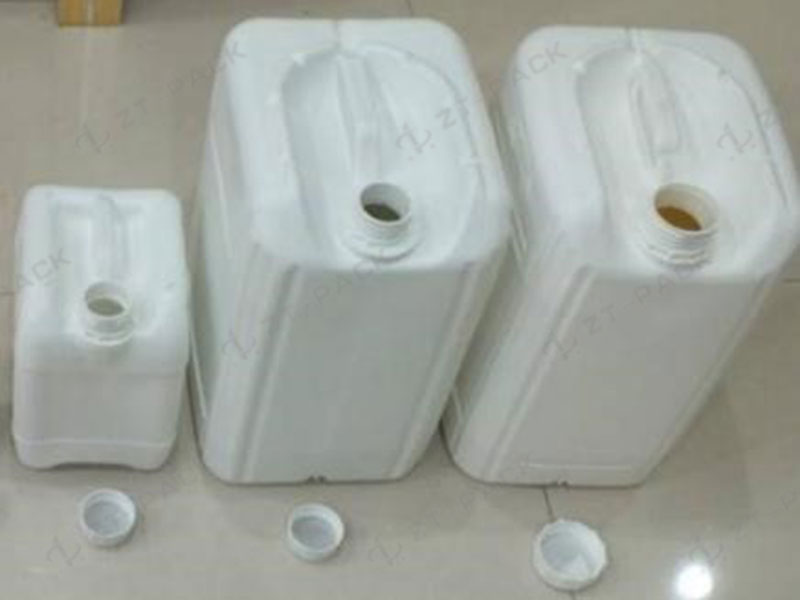

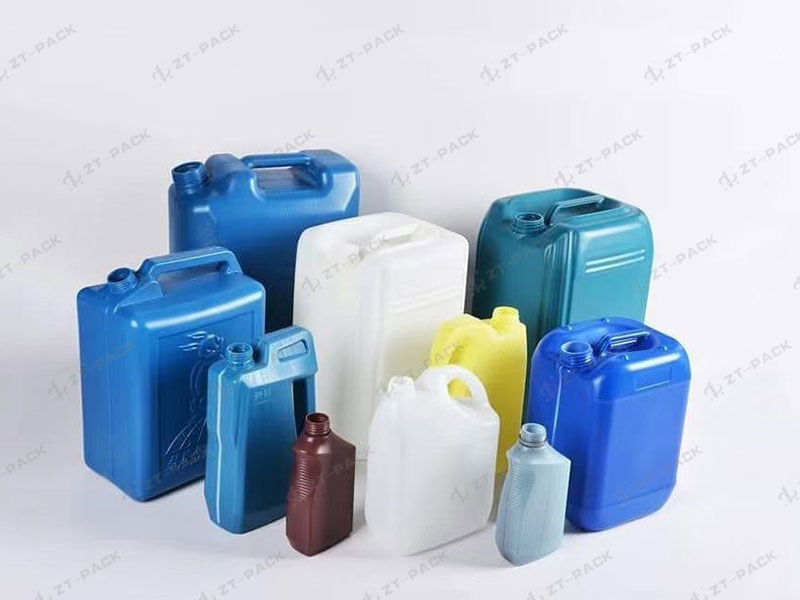

This line is suitable for packing 5L -20L acid bleach products, acid, toilet cleaner, corrosive liquids, etc.

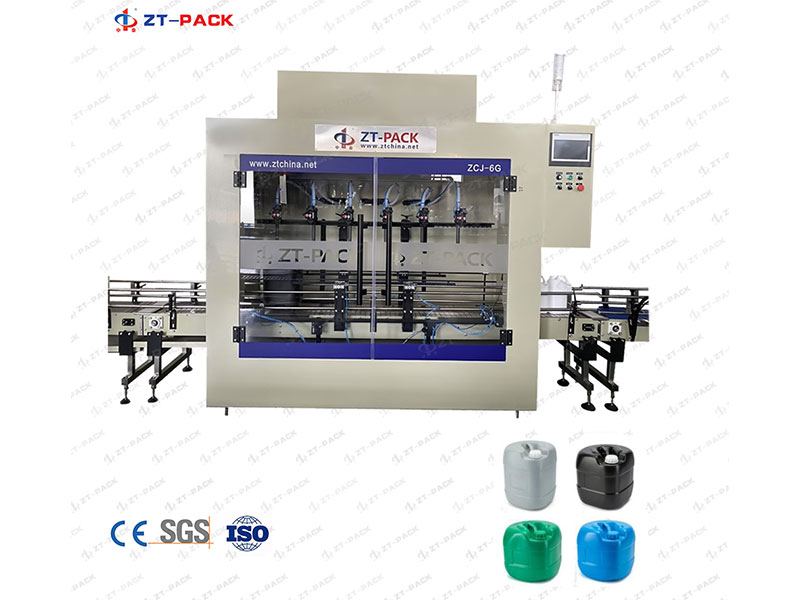

This machine is used for the automatic low viscosity liquid filling in 5L -20L

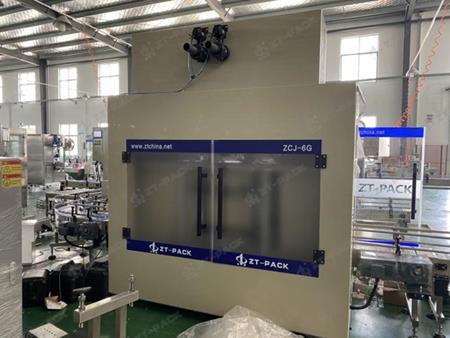

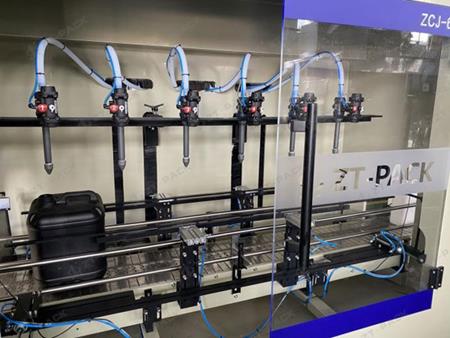

The machine is a full corrosion-protecting high-tech filler integrating in the PLC program control, photo electricity transuding and pneumatic. The machine is specially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal. The equipment’s all parts touching liquid are manufactured with the non-metallic corrosion protection material, and designed the descending filling function. Measurement accurate, there is not bubble and drool as filling.
|Suitable bottle||length:160-360mm width:100-300mm height:250-500mm|
|Filling System||Gravity Time Control Filling System|
|Barrel neck diameter||≥Φ40mm|
|Air pressure||0.6-0.8 Mpa|
Zhongtai Packing Machinery Company develops high quality packaging and bottling production lines. From filling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers. Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods; beer, wine, soda, and other beverages; cosmetic and beauty care products such as lotions, creams, and shampoos; pesticides and other agrochemicals; and oils and gases. We help customers from over 30 countries around the world to package their products.
Zhongtai is a specialized filling and packaging equipment manufacturer, located within Jintai Economic Development Zone of Jiangsu Province. Our factory spans across 5,550 square meters. Our packaging machines are installed in over 20 provinces in China, Southeast Asia, and more overseas markets.
