Single-Head Automatic Screw Capper, FX-1A

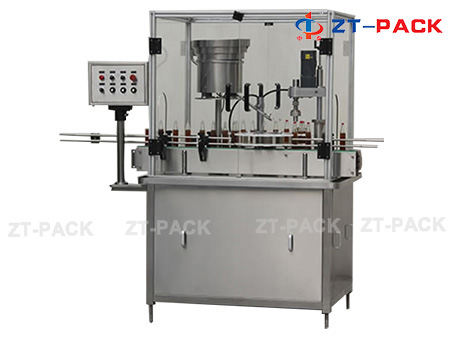

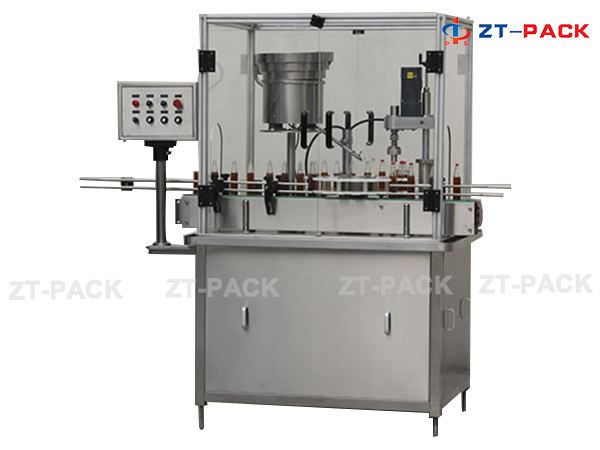

Single-Head Automatic Screw Capper, FX-1A

The FXJ-1 single-head automatic screw capper uses a vibrating cap sorter and fetching cap supplier. The capping head has a high qualification rate of capping and can cap plastic, aluminum, and press-in caps. The low speed screw capping machine is easy to adjust specifications for different containers. The bottle capping equipment can be used within a production to cap containers holding chemicals, medicine, food, beverages, cosmetics or cleaning products.

Main performance parameters

Capacity:≤2500 Bottles/hour
Bottle Type: Φ100-250mm
Bottle Dimensions: Φ40-90mm
Cap Specification:Φ25-50mm
Air Pressure: 0.5~0.7 MPA
Power Source: ~220V,50HZ
Power: 1.2KW
External Dimensions: 2200 x 1500 x 2000 mm(L x W x H)

Features:

High qualified rate of capping.

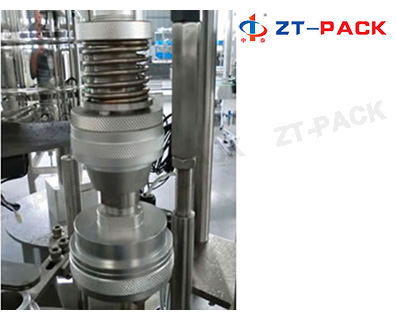

The capping head tightens caps with air pressure so caps aren't damaged.
Sensors automatically stop the machine when there are no bottles, the bottles are jammed, or there are no caps.
Stable and reliable operation.

Choose this capping machine if

Caps with or without a protective lock ring are suitable.

Configuration

No.	Name	Brand	Origin	Quantity
1	Reducer motor	Ziguang	China	1
2	Power button	Schneider	France	1
3	Frequency inverter	Schneider	France	2
4	Sensor for bottles	OPTEX	Japan	1
5	Sensor for caps	Omron	Japan	1
6	Cap sort motor	Ziguang	China	1

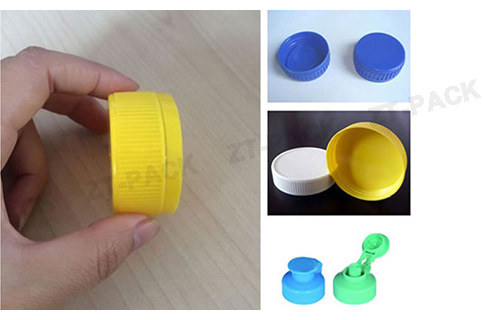

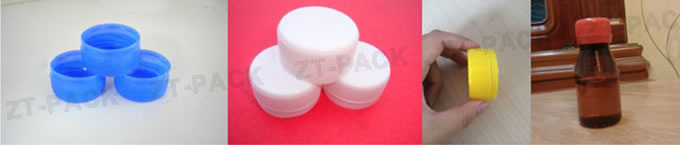

Suitable caps
