1-5L Chemical Packaging

1-5L Chemical Packaging
50-1000ml Viscous Food and Oil Packaging Machine (for Viscous Liquid) 50-1000ml Viscous Food and Oil Packaging Machine (for Viscous Liquid)

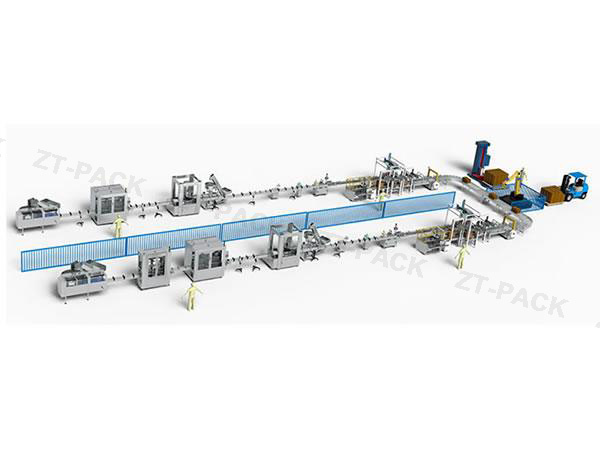

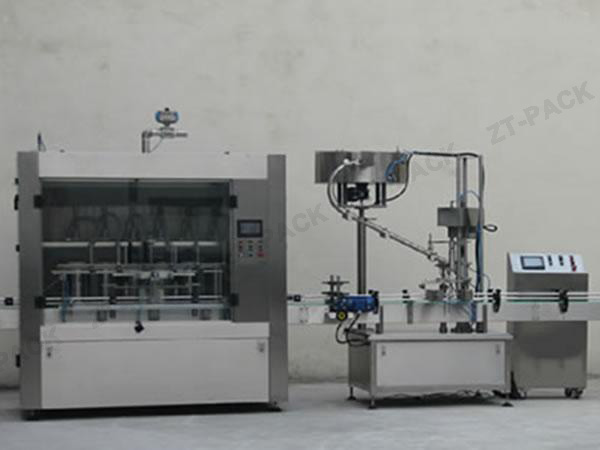

The 1-5L high viscous liquid packing line combines filling and capping units in one line. It is an ideal liquid packaging solution for packing shampoo, detergent, lotion and other cosmetics. This cosmetic packing line is applicable for bottles with a volume within 5L and consists of the conveyor, labeling machine, filling machine, sealing machine, and packing units.

Features
  • The 1-5L high viscous liquid packing line requires only 3 operators.
  • The cosmetics filling machine features a high precision and high pass rate.
  • The manufacturing capability is increased by 30%.
  • The self-adhesive labeling machine can be applied to both round and flat bottles.
  • The floor standing packing machine is suitable for bottles otherwise too heavy for other machines.
  • This line is equipped with an automatic packing and sealing machine that are easy to operate, and thus, increase production speed.
Technical Parameters
Suitable range 1-5L
Output capacity 2000-800 b/h
Capacity 1000ml≤2000b / h; 5000ml≤800b/ h
Applicable bottle type round bottle diameter:
round bottle diameter: Φ60-140mm;
height: 100-340mm (LxWxH)
Bottle’s mouth diameter ≥φ25mm
Filling range 1000-5000ml
Precision (200ml) ±1％; (200ml-1000ml) ±0.5％
Air pressure 0.6~0.8 MPA
Air consumption 120 L/m
Power source ~380V, 50HZ
Power 4.5KW
Production line height 900mm±50mm
Bottle feed direction from left to right

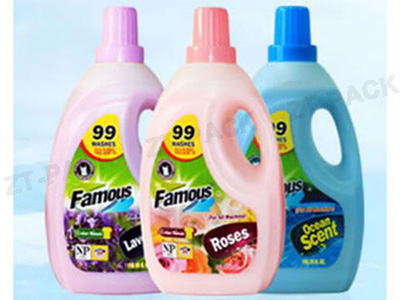

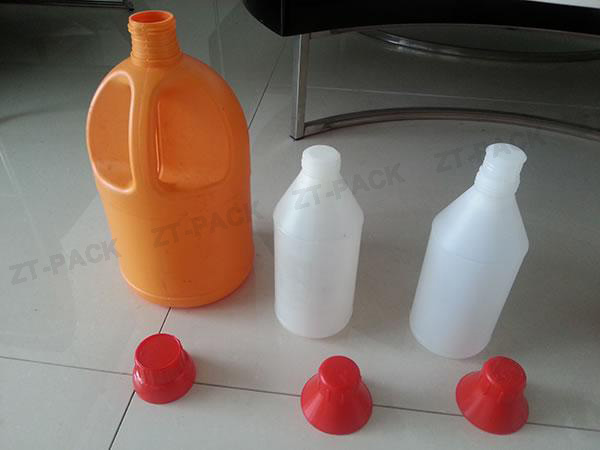

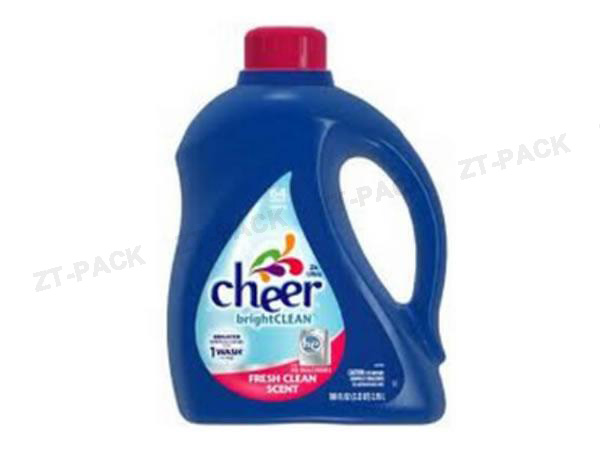

Suitable bottles
  • 1-5L Chemical Packaging
  • 1-5L Chemical Packaging
  • 1-5L Chemical Packaging
Other Applications
ZHONGTAI Packing Machinery

Zhongtai is a specialized filling and packaging equipment manufacturer, located within Jintai Economic Development Zone of Jiangsu Province. Our factory spans across 5,550 square meters. Our packaging machines are installed in over 20 provinces in China, Southeast Asia, and more overseas markets.
