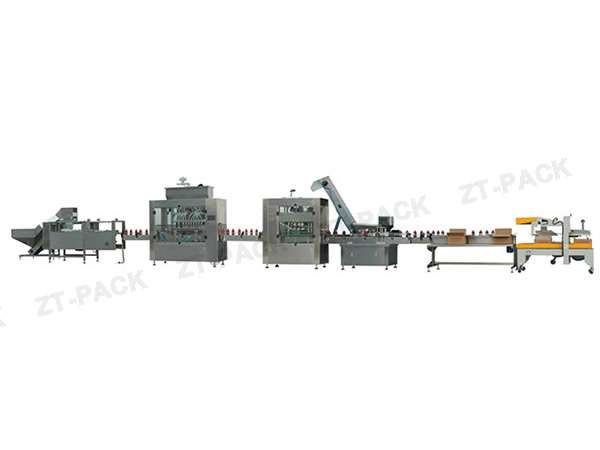

The 50-1000ml low viscous liquid packing line is used for filling of low viscous liquid within 1000ml. The packing line is equipped with an automatic bottle unscrambler, filling machine, capping machine, and self-adhesive labeling machine, forming a complete production line. This high speed and high efficiency packing line is widely used for low viscous liquid such as screen washes, soy sauce, vinegar and more.
Capacity | 50ml -100ml≤6000 b/h; 500ml≤5000 b/h; 1000ml≤4500 b/h |
Applicable bottle type | Φ40-100mm round bottle, 80-280mm height Flat bottle (40-100mm)*(40-100mm)*(80-280mm) (LxWxH) |
Bottle’s mouth diameter | ≥φ25mm |
Filling range | 50-1000ml |
Precision | (200ml)±1%; (200ml-1000ml)±0.5% |
Air pressure | 0.6〜0.8 MPA |
Power source | 〜380V, 50HZ |
Production line height | 900mm±50mm |
Bottle feed direction | from left to right |
Zhongtai is a specialized filling and packaging equipment manufacturer, located within Jintai Economic Development Zone of Jiangsu Province. Our factory spans across 5,550 square meters. Our packaging machines are installed in over 20 provinces in China, Southeast Asia, and more overseas markets.
