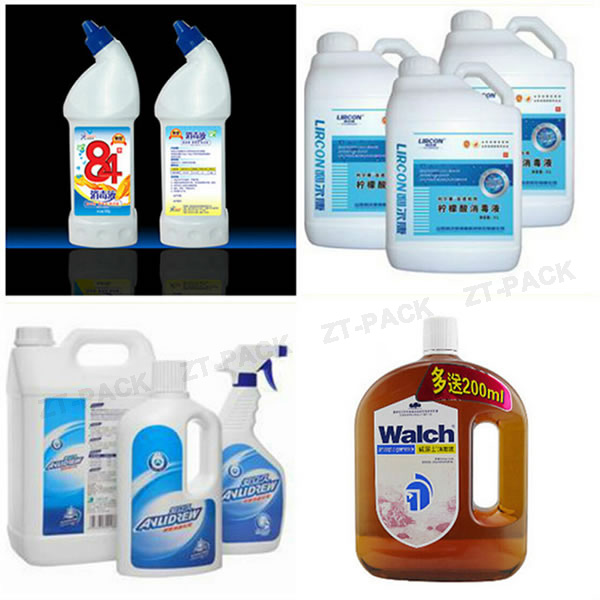

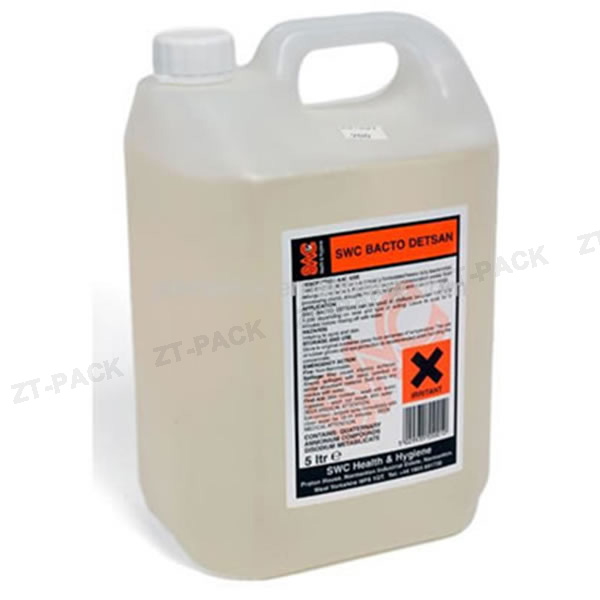

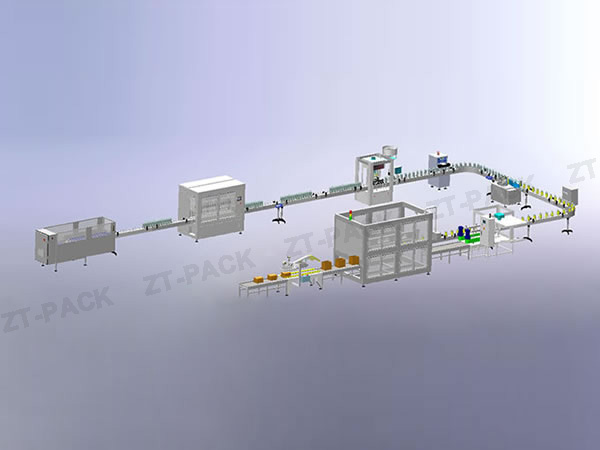

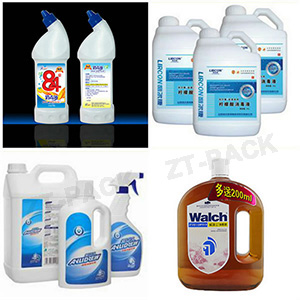

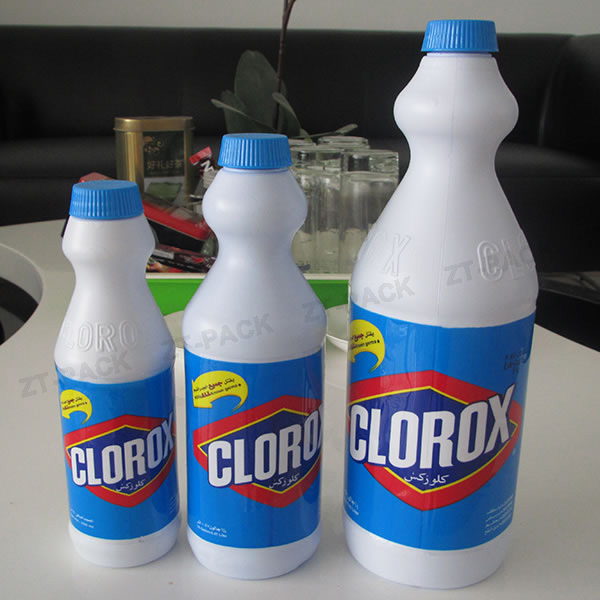

The corrosive liquid packaging line is used to fill bottles with a capacity under 5000ml. This packaging line is a complete production line consisting of an automatic bottle opener, filling machine, capping machine and self-adhesive labeling machine. It also carries out box packing and sealing. This liquid packing line is suitable for strong acid and strong base, bleach, Clorox® disinfecting bleach and some other corrosive liquid with low viscosity, requiring pilfer proof cap.
Capacity | 50ml -100ml≤6000 b/h; 500ml≤5000 b/h; 1000ml≤4500 b/h |
Suitable bottle | round bottle Φ40-100mm, height 80-280 mm Flat bottle (40-100mm)*(40-100mm)*(80-280mm) (LxWxH) |
Neck diameter | ≥φ25mm |
Filling range | 100-5000ml |
Accuracy | (200ml)±1%; (200ml-1000ml)±0.5% |
Air pressure | 0.6〜0.8 MPA |
Power source | 〜380V, 50HZ |
Production line height | 900mm±50mm |
Bottle feed direction | from left to right |
Zhongtai is a specialized filling and packaging equipment manufacturer, located within Jintai Economic Development Zone of Jiangsu Province. Our factory spans across 5,550 square meters. Our packaging machines are installed in over 20 provinces in China, Southeast Asia, and more overseas markets.
