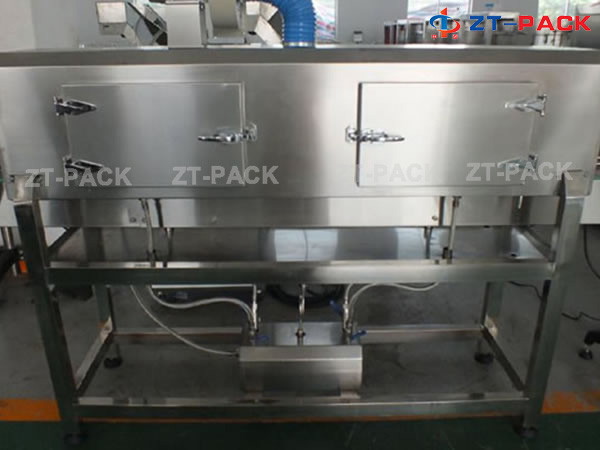

Shrink Tunnel, HX-100

Shrink Tunnel, HX-100

The HX-100 shrink tunnel is fully automatic, emitting a continuous output of steam to steam labels onto bottles of many different specifications. Easy to use and highly efficient, the heat tunnel is an essential part of the production line.

Features
  • This label shrinking steam machine can process differently shaped bottles of a variety of specifications with simple adjustment.
  • Small and compact, the machine uses steam drums which eject steam through three different passages at adjustable volumes.
  • Low-pressure steam drums made of seamless steel tubes are easy to install and discharge.
  • Made from food grade stainless steel, the machine is waterproof and easy to use.
Main performance parameters
  • Model: HX-100
  • Production capacity: ≥ 6000BPH(height of label ≤100mm)
  • Bottle diameter: Φ28mm~Φ125mm
  • Height of bottle: 30mm-280mm (or customized)
  • Label: PVC PET OPS
  • Label length: 30mm-250mm
  • Label thickness: 0.038mm-0.13mm
  • Label materials: PVC PET OPS
  • Input power supply: AC 380V, 50/60HZ 3-phase
  • Input power: 18KW /36KW
  • Steam pressure: 0.3~0.45MPa
  • Steam generated: 24kg/h; 48kg/h
  • Machine dimensions: 600mm*550mm*1200mm
  • Weight: 96kg
