Carton Packaging Line

Carton Packaging Line

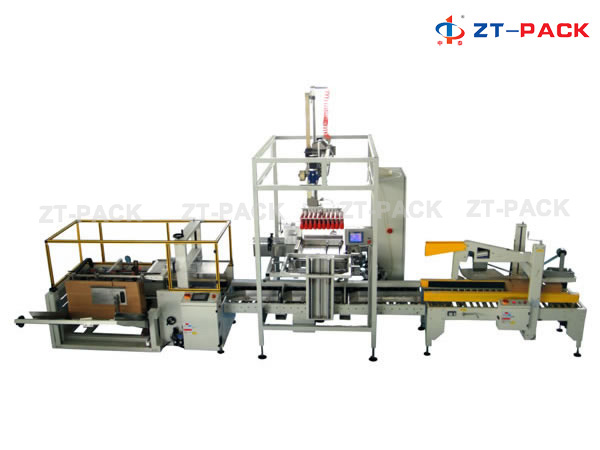

The carton packaging line opens, packages and seals cartons full of regular or flat glass and plastic bottles. This carton packaging machine is used to package food, beverages, medicine, cosmetics, fertilizers, and chemicals.

Main performance parameters
  • Packing Speed: 8 carton/min
  • Carton specification: L 200-550mm,W 150-400mm, H 100-400mm Labeling
  • Precision: ±1mm
  • Applicable bottle: MinΦ40mm
  • Air pressure: 0.5-0.7 Mpa
  • Power source: ~ 220V, 50HZ
  • Power: 5 KW
  • External dimensions: 6000 x 1500 x 2500 (L x W x H)mm
  • Weight: 1000KG
Features
  • Compact combined opening, packing and sealing machine.
  • Weight: 200kg

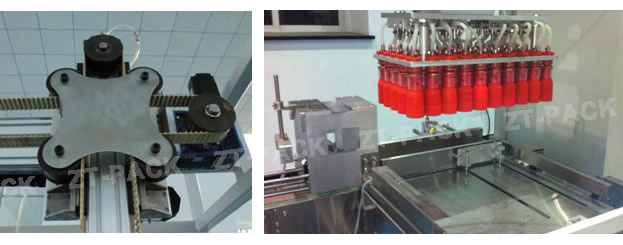

  • Double servo drive and cross move structure does automatic bottle selection and packing.
  • Inflatable bottle grab structure adjustable for different bottles.
    Carton Packaging Line
  • Easily adjustable for height and other settings.

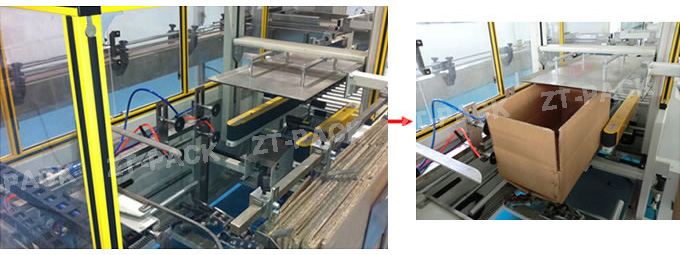

  • Efficient opening and carton conveying structures.
    Carton Packaging Line Carton Packaging Line

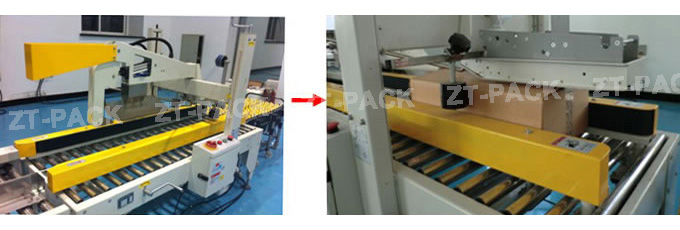

  • Effective and reliable sealing.
    Carton Packaging Line
  • Optional DB-02 automatic clipper is available.
    Carton Packaging Line
