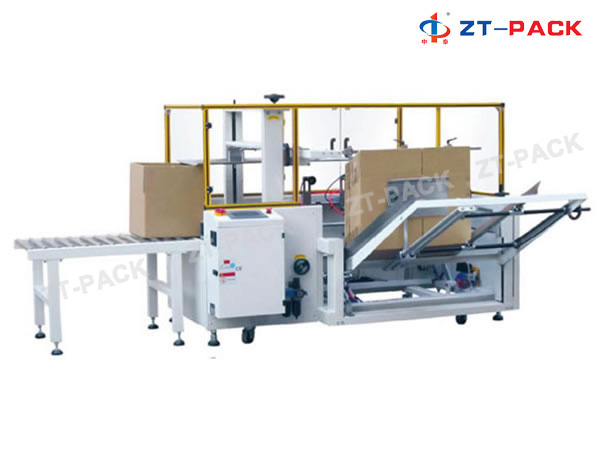

Automatic Case Erector, KX-02
The automatic case erector opens, forms, and fold cartons, sealing with tape or glue as needed before sending the empty carton to the packing machines. This high speed case opening machine can prepare large quantities of cartons at a time and is easy to operate with a PLC and touch screen.
Main performance parameters
- Forming speed: 15-18 cases per hour
- Tape width: 4.8-7.2cm (the tape maximum length is 2000 meter)
- Air pressure: 0.6-0.8 MPa
- Case specifications: L 200-450mm, W 150-450mm, H 100-400mm
- Power source: AC220V, 50Hz
- Power: 1 KW
- Weight: about 600 KG
- External Dimensions: 2100 x 2050 x 1500(L x W x H)mm
