Edible Oil Filling Machine (0.5L-5L)

Home
Packaging Machines
Filling Machines
Edible Oil Filling Machine

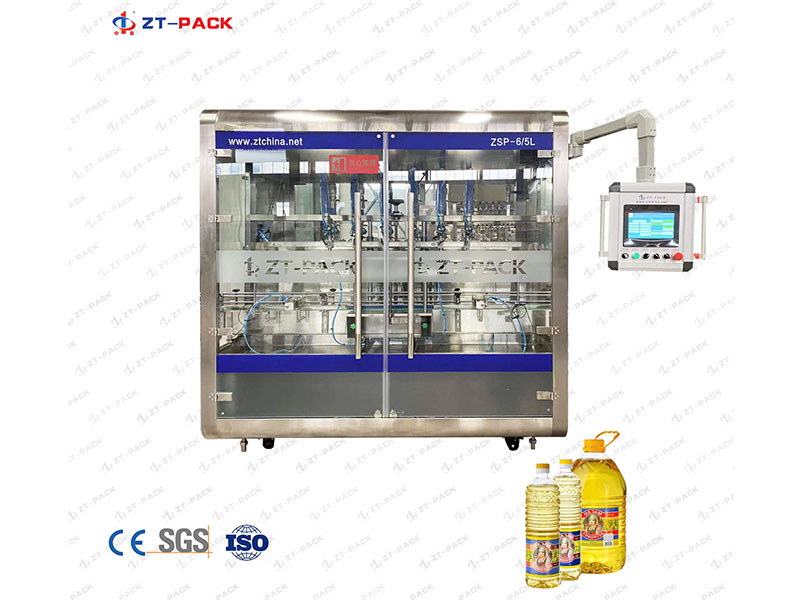

Edible Oil Filling Machine (0.5L-5L)

Suitable for Filling: edible oil / cookie oil / sunflower oil / olive oil / peanut oil / rapeseed oil /soybean oil, etc.

Filling Range: 0.5L-5L

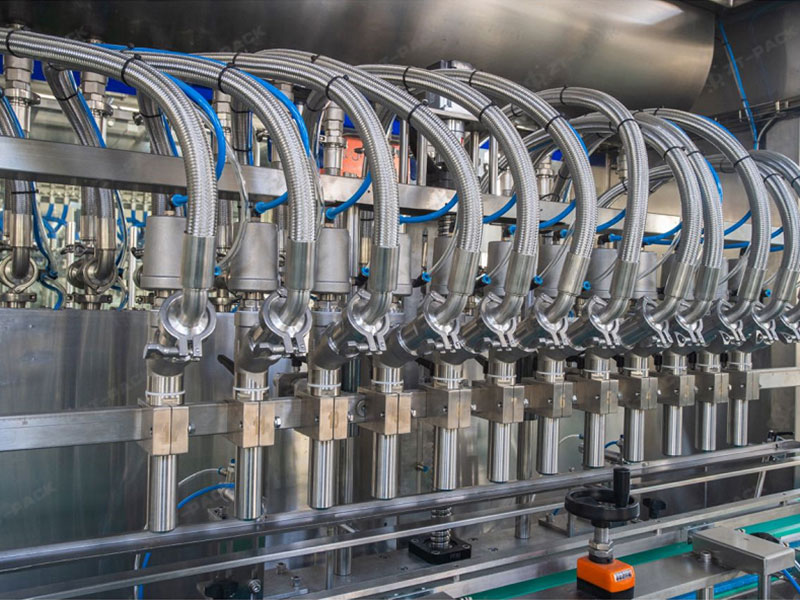

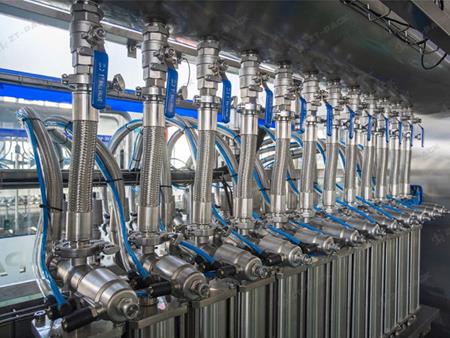

This machine is a piston Type filling machine with high filling accuracy.
It applies to 0.5-5L liquid for filling.
Filling system can be choose: Flow meter /piston /Net weight
Widely use for edible oil packing industries
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.

Inquiry

Specifications

Model	ZSP-6A	ZSP-8A	ZSP-10A	ZSP-12A	ZSP-16A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)		2300mm(L)x1100mm(W)x2200mm(H)		2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8	10	12	16
Capacity(1L)	1500B/H	2300 B/H	2800 B/H	3200 B/H	4500 B/H
Power	2.2kW	2.2kW	2.2 kW	3kW	3kW
Suitable bottle	Diameter: Φ40mm--Φ100mm Height: 80mm--280mm
Neck diameter	Φ18mm
Filling range	50ml-1000ml (From ZT-PACK)
Filling System	Piston Type
Air pressure	0.6Mpa-0.8Mpa
Power supply	380V, 50Hz / 60Hz

Suitable for Filling

Get In Touch

Zhongtai Packing Machinery Company develops high quality packaging and bottling production lines. From filling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers. Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods; beer, wine, soda, and other beverages; cosmetic and beauty care products such as lotions, creams, and shampoos; pesticides and other agrochemicals; and oils and gases. We help customers from over 30 countries around the world to package their products.
