Suitable for Filling: edible oil / cookie oil / sunflower oil / olive oil / peanut oil / rapeseed oil /soybean oil, etc.
Filling Range: 0.5L-5L

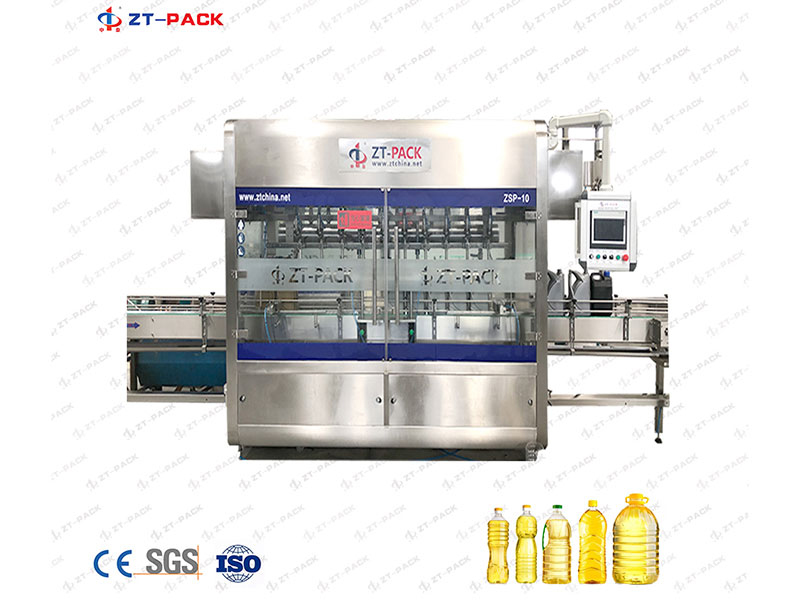

This machine is a flow meter type filling machine with high filling accuracy.
It applies to 0.5-5L liquid for filling.
Filling system can be choose: Flow meter /piston /Net weight
Widely use for edible oil packing industries
The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 4/ 6/ 8 /12 nozzles.
The filling volume is controlled by flow meter and gear pump, good filling accuracy and high filling speed.
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.
Model | ||||||||||
Nozzle Number | 4 | 6 | 8 | 12 | ||||||
Filling volume | 500ml-5L(from ZT-PACK) | |||||||||
Production capacity | 300-4000pcs/Hour (depending on filling volume and filling head) | |||||||||
Quantitative error | ≤±0.5% | |||||||||
Voltage | AC200V / 380±10% ; 50HZ/60HZ | |||||||||
Filling method | By flow meter system | |||||||||
Consumed power | 3 | 6 | 9 | 12 | ||||||
Air pressure | 0.6Mpa-0.8Mpa | |||||||||
Power supply | 1.5kw | 2.2kw | 3kw | 4kw |
